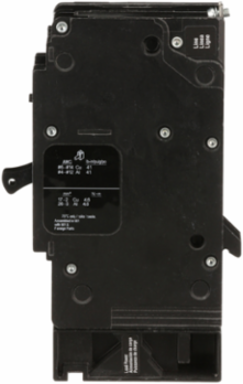

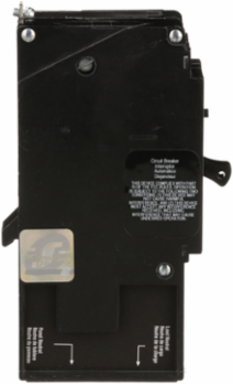

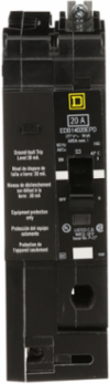

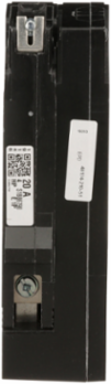

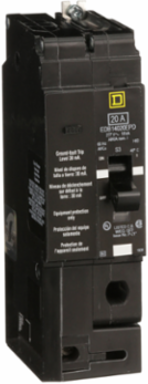

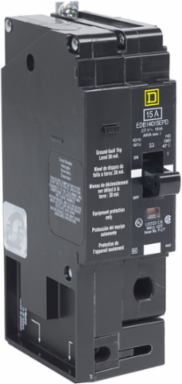

Mini Circuit Breaker 20A 1 Pole 277V AC Bolt-On 30mA Ground Fault
Mini Circuit Breaker 20A 1 Pole 277V AC Bolt-On 30mA Ground Fault
Square D

Square D EDB14020EPD Mini Circuit Breaker 20A 1 Pole 277V AC Bolt-On 30mA Ground Fault

  • MPN: EDB14020EPD
  • UPC: 785901425045
  • PPN: SCH-EDB14020EPD

CAD

$813.66

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 20A, 1 pole, and has an operating voltage of 277 VAC. It also provides a 25 kA max interrupt rating at 120 VAC. This device has a hold current of 270A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 875A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This one includes 30 mA ground protection. This breaker was calibrated for 40 degrees C. This product is UL Listed as Switching duty and High Intensity Discharge. HACR rated.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Mexico
Depth
4.05 in
ComplianceTAA Compliant

Complementary Attributes

Line Rated Current
20 A

Important Information Attributes

Persona Type Ids
LC, OM
Awg Gauge
AWG 14...AWG 6 copper, AWG 12...AWG 4 aluminium
Protection Type
overload, short-circuit
Carbon Footprint Of The Distribution Phase [A4]
0.62537, 0.6 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
0.049154, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
51 kg CO2 eq., 50.548
Local Publishable Date
2026-05-19
Stocking Flag
N
Device Type
LV equipment - Low voltage circuit breaker
Traceability
Yes
Average Life Duration
15 year(s)
Use Carbon Footprint
50.548
Weee Product Category
5
Eoli Availability Display
Yes
Reach Full Compliance Status
Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive
Reference contains Substances of Very High Concern above the threshold
China Rohs In Scope
No
Without Single Use Plastic
Yes
Tier Id
1
Function Option Id
STANDARD
Market Segmentation Id
COMMERCIAL
Product Kit Identifier
N
Electrical Connection
lugs aluminium
Holding Current
270 A
Module Type
E-Frame
Number Of Poles
1
Number Of Spaces Required
2
Product Destination
NF panelboard
Range Of Product
125 A Frame EDB-EGB-EJB
Software Version
EIME v5.9.4
Tightening Torque
3.4-3.4 N.m 2.5-16 mm² (AWG 14...AWG 6)
Trip Unit Rating
875-875 A
Pep Code
ENVPEP2212008EN
Pep Verification Date
2023-08-01
Psr Version
PSR-0005-ed2-EN-2016 03 29
Data Source
referent product
Functional-unit Quantity
1
Reference Lifetime, In Y
20
Energy Model - Installation [A5]
Electricity mix; AC; consumption mix, at consumer; 120V; US
Energy Model - End Of Life [C1-c4]
Electricity mix; AC; consumption mix, at consumer; 120V; US
Height Nominal
6.64 in
[Ue] Rated Operational Voltage
277 V AC
Earth-leakage Protection Class
class B
Nbr. Of Units In Pkg.
1
Take-back
No
Air Pollution (M3) Total Life Cycle
6074.5
Air Pollution (M3) Distribution [A4]
26.008
Air Pollution (M3) Operational Energy Use [B6]
4292.7
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle
731.5
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]
8.7872
Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]
1.1446
Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3]
10.527
Hazardous Waste Disposed Of (Kg) Total Life Cycle
37.721
Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
1.3515
Materials For Recycling (Kg) Total Life Cycle
1.3486
Net Use Of Fresh Water (M3) Manufacturing [A1-a3]
1.3968
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
2.9333
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle
810.2
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Distribution [A4]
8.8317
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4]
1.4152
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
197.16
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
680.51
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle
78.372
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
40.869
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
10.888
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
148.78
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
639.64
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
3.9434
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
74.428
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
40.869
Water Pollution (M3) Manufacturing [A1-a3]
1004.7
Water Pollution (M3) Installation [A5]
7.4558
Water Pollution (M3) End Of Life [C1-c4]
15.594
Persona Type NamesContractor, Original Equipment Manufacturer
Circuit Breaker ApplicationSwitching Duty rated, HID rated, HACR rated
Certificate AgencycULus, IEC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3 kg CO2 eq., 0.27406
Carbon Footprint Of The Manufacturing Phase [A1 To A3]11 kg CO2 eq., 10.527
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Manufacturing Carbon Footprint10.527
Weee ScopeIn
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2212008
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationCommercial
Device Short NameEDB
Energy Efficiency OptimizedFalse
Local Signallingtrip indicator
Mounting Modebolt-on
Number Of Spaces2
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typeminiature circuit-breaker
ReturnabilityYes
Sustainable PackagingYes
Total Lifecycle Carbon Footprint62 kg CO2 eq.
Trip Unit Technologythermal-magnetic
Database Version2022-01
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 277 VAC and rated current 20 A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1P& 10- Rated breaking capacity 18 kA, 25 kA max& 10- Tripping curve 515-1
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Energy model used: Mexico
Energy Model - Use [B6]Electricity mix; AC; consumption mix, at consumer; 120V; US
Recyclability Potential, In %31
Width Nominal1.96 in
Earth-leakage Sensitivity30 mA
Carbon Footprint (Kg Co2 Eq, Total Life Cycle)62.024
Package Weight(Lbs)952.543 g
Warranty (In Months)18
Air Pollution (M3) Manufacturing [A1-a3]1743.4
Air Pollution (M3) Installation [A5]1.9604
Air Pollution (M3) End Of Life [C1-c4]10.349
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]105.49
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]615.44
Global Warming (Kg.Equivalent.Co2) Total Life Cycle62.024
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]50.548
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]34.796
Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4]1.5733
Net Use Of Fresh Water (M3) Total Life Cycle1.4864
Non-hazardous Waste Disposed Of (Kg) Total Life Cycle10.695
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]7.7289
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]159.67
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]639.64
Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle888.57
Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]8.8435
Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]1.4167
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]37.489
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle10.888
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle799.31
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]8.8317
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]1.4152
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]3.9434
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]33.545
Water Pollution (M3) Total Life Cycle3622.6
Water Pollution (M3) Distribution [A4]102.86
Water Pollution (M3) Operational Energy Use [B6]2492

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level
0 %
Ambient Air Temperature For Operation
40 °C
Environmental Disclosure
ENVPEP2212008EN
Packaging Made With Recycled Cardboard
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Pep Verification Date
2023-08-01
Psr Version
PSR-0005-ed2-EN-2016 03 29
Take BackNo
Carbon Footprint62.024
Circularity ProfileENVEOLI2212008
Eu Rohs DirectiveUnder investigation
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2212008EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent external review

General Attributes

Product Or Component Type
miniature circuit-breaker
Range Of Product125 A Frame EDB-EGB-EJB

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
