Wiegmann SC101004 N1 Screw-Cover 10X10X4 Carbon Steel - Gray
- MPN: SC101004
- UPC: 786725313501
- PPN: HBL-SC101004
- UNSPSC: 39121324
CAD
$89.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

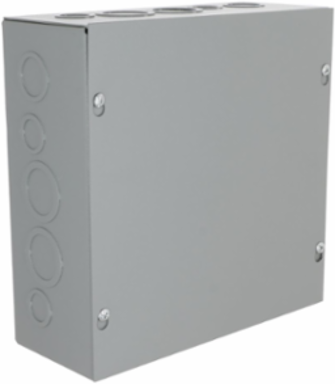

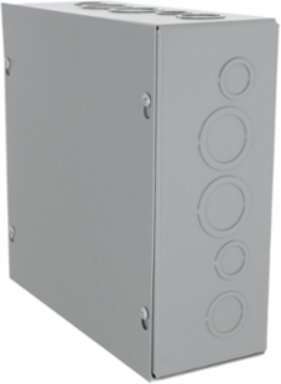

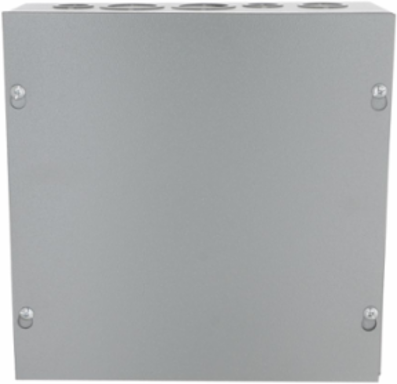

N1 Screw-Cover 10X10X4 Carbon Steel - Gray
Features
- Fabricated from 16 gauge steel. Flat, removable covers fastened with plated steel screws. Cover design permits easy removal without extracting cover screws. Mounting holes on back of box. Removable concentric knockouts on all four sides.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Actual Height
- 10.125 in
- Application
- Designed for use as a junction box and pull box in commercial and general industrial applications. Flush covers must be ordered separately for flush mount applications.
- Color
- Ansi-61 Gray Textured
- Cubic Capacity
- 400 cu.in
- Finish
- Textured
- Mounting

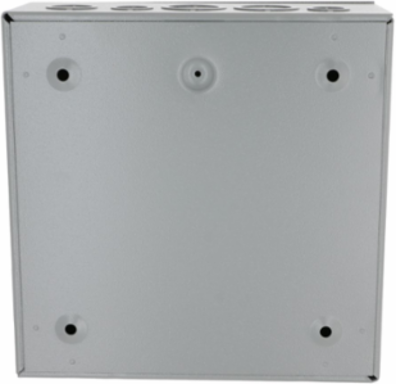

- Embossed Mounting Holes
- Standard
- cULus
- Width
- 10 in
- Finish Type
- Textured
- Material type
- Carbon Steel
- Nema Rating
- 1
- Class Code
- P01
- Freight Class Code
- 06316009
- Image Actual Or Representative
- A
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P01P018
- Construction
- Spot Welded
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 7.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Actual Depth4.188 in
Actual Width10.125 in
Cable EntryKnock Outs
Cover TypeScrew Cover
Depth4 in
Height10 in
NEMA Rating1
TypeEnclosure
Weight7 lb.
KnockoutsYes
Mounting TypeEmbossed Mounting Holes
ARRA CompliantContact Manufacturer
Description - InvoiceSC PULL BOX,CS,10X10X4
Harmonization Code7326908688
Lead Time7 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
UL ListedYes
MaterialCarbon Steel
BOX SIZE5.400x11.200x11.200 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00786725313501
Pallet Height47.700 in
Pallet Weight708.360 lb.
NAICS Code3359326101
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- Yes
Certified ListedcULus
ListingsUL, CSA
