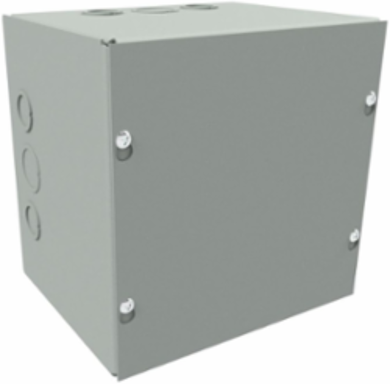

Wiegmann SC101204 N1 Screw-Cover 10X12X4 Carbon Steel - Gray
Wiegmann SC101204 N1 Screw-Cover 10X12X4 Carbon Steel - Gray
- MPN: SC101204
- UPC: 786725313709
- PPN: HBL-SC101204
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$100.74/ EA
Description
N1 Screw-Cover 10X12X4 Carbon Steel - Gray
Features

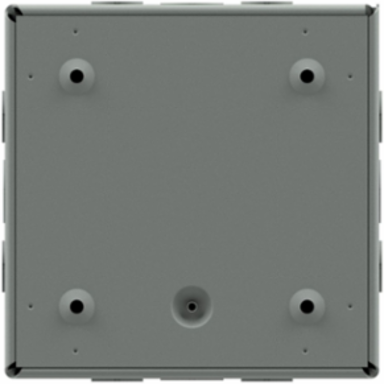

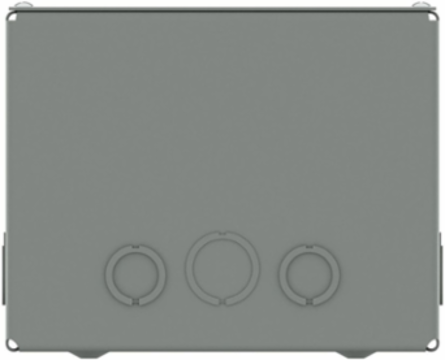

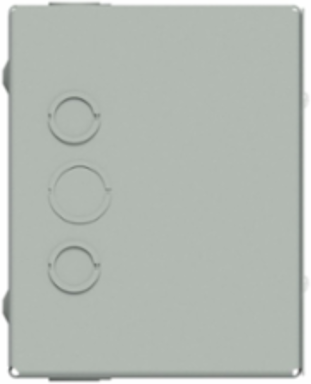

- Fabricated from 16 gauge steel. Flat, removable covers fastened with plated steel screws. Cover design permits easy removal without extracting cover screws. Mounting holes on back of box. Removable concentric knockouts on all four sides.
Specifications
Specifications
- Country of Origin
- Mexico
- Actual Height
- 12.25 in
- Application
- Designed for use as a junction box and pull box in commercial and general industrial applications. Flush covers must be ordered separately for flush mount applications.
- Color
- Ansi-61 Gray Textured
- Cubic Capacity
- 480 cu.in
- Finish
- Textured
- Mounting
- Embossed Mounting Holes
- Standard
- cULus
- Width
- 10 in
- Finish Type
- Textured
- Mounting Type
- Embossed Mounting Holes
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- SC PULL BOX,CS,10X12X4
- Harmonization Code
- 7326908688
- Lead Time
- 7 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- UL Listed
- Yes
- Material
- Carbon Steel
- BOX SIZE
- 5.650x13.300x12.850 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725313709
- Pallet Height
- 38.400 in
- Pallet Weight
- 494.550 lb.
Actual Depth4.188 in
Actual Width10.125 in
Cable EntryKnock Outs
Cover TypeScrew Cover
Depth4 in
Height12 in
NEMA Rating1
TypeEnclosure
Weight7.8 lb.
KnockoutsYes
Nema Rating1
Class CodeP01
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP01P018
ConstructionSpot Welded
Base Unit of MeasureEA
Carton - Gross Weight per Pack7.800 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- Yes
Certified ListedcULus
ListingsUL, CSA
