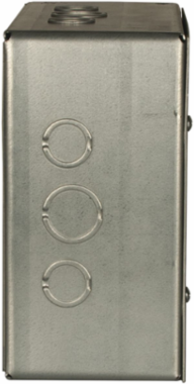

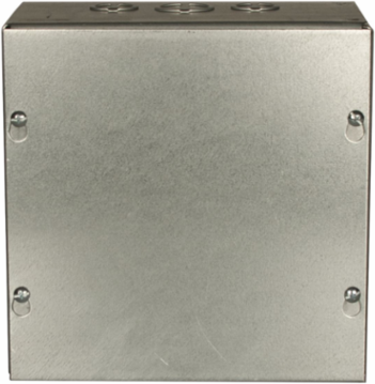

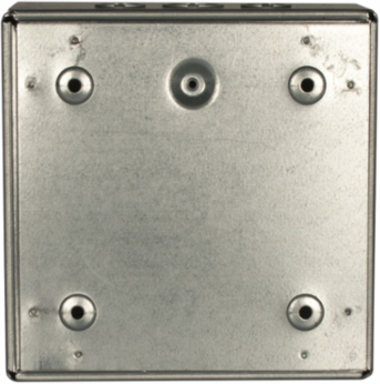

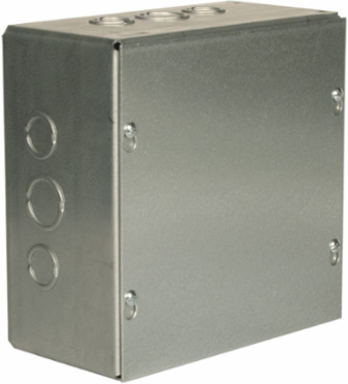

Wiegmann SC101206G N1 Screw-Cover 10X12X6 Carbon Steel - Galvanized
- MPN: SC101206G
- UPC: 786725317851
- PPN: HBL-SC101206G
- UNSPSC: 39121324
CAD
$119.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
N1 Screw-Cover 10X12X6 Carbon Steel - Galvanized
Features
- Fabricated from 16 gauge G-90 pre-galvanized steel. Flat, removable covers fastened with plated steel screws. Cover design permits easy removal without extracting cover screws. Mounting holes on back of box. Removable concentric knockouts on all four sides.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Actual Width
- 10.125 in
- Cable Entry
- Knock Outs
- Cubic Capacity
- 720 cu.in
- Finish
- Galvanized
- Mounting
- Embossed Mounting Holes
- Standard
- cULus
- Width
- 10 in
- Finish Type
- Galvanized
- Mounting Type
- Embossed Mounting Holes
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- SC,PULL BOX,GALV,10X12X6
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- UL Listed
- Yes
- Material
- Carbon Steel
- BOX SIZE
- 7.000x13.500x13.000 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725317851
- Pallet Height
- 46.500 in
- Pallet Weight
- 585.000 lb.
- NAICS Code
- 3359326101
Actual Height12.25 in
ApplicationDesigned for use as a junction box and pull box in commercial and general industrial applications. Flush covers must be ordered separately for flush mount applications.
Cover TypeScrew Cover
Depth6 in
Height12 in
NEMA Rating1
TypeEnclosure
Weight9.8 lb.
KnockoutsYes
Nema Rating1
Class CodeP01
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP01P018
ConstructionSpot Welded
Base Unit of MeasureEA
Carton - Gross Weight per Pack9.800 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- Yes
Certified ListedcULus
ListingsUL, CSA
