Wiegmann SC121204G N1 Screw-Cover 12X12X4 Carbon Steel - Galvanized
- MPN: SC121204G
- UPC: 786725317950
- PPN: HBL-SC121204G
- UNSPSC: 39121324
CAD
$114.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

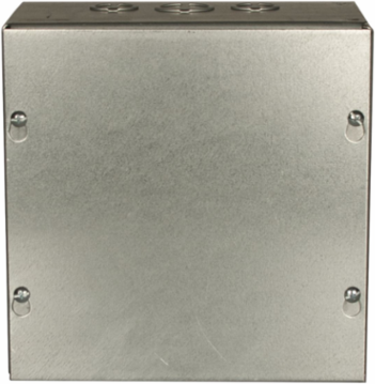

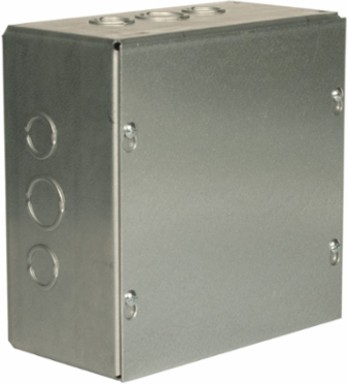

N1 Screw-Cover 12X12X4 Carbon Steel - Galvanized
Features

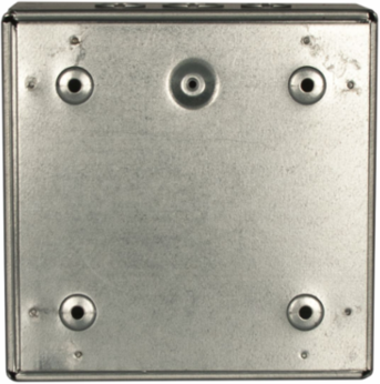

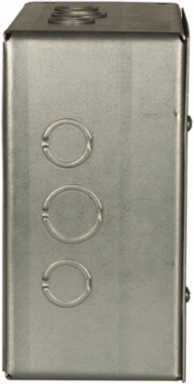

- Fabricated from 16 gauge G-90 pre-galvanized steel. Flat, removable covers fastened with plated steel screws. Cover design permits easy removal without extracting cover screws. Mounting holes on back of box. Removable concentric knockouts on all four sides.
Documentation & Downloads
Specifications
Key Specifications
- Cubic Capacity
- 576 cu.in
- Mounting
- Embossed Mounting Holes
- Standard
- cULus
- Stock Indicator
- S - Shelf Stock
- Actual Depth
- 4.188 in
- Actual Width
- 12.125 in
- Height
- 12 in
- Width
- 12 in
- Cable Entry
- Knock Outs
- Finish Type
- Galvanized
- Mounting Type
- Embossed Mounting Holes
- Type
- Enclosure
- Description - Invoice
- SC,PULL BOX,GALV,12X12X4
- Harmonization Code
- 7326909999
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Sub Class Code
- P01P018
- Construction
- Spot Welded
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 9.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5
- Pallet Length
- 40.000 in
- Pallet Width
- 48.000 in
FinishGalvanized
NEMA Rating1
ARRA CompliantContact Manufacturer
Country of OriginMexico
Actual Height12.25 in
Depth4 in
Weight9 lb.
ApplicationDesigned for use as a junction box and pull box in commercial and general industrial applications. Flush covers must be ordered separately for flush mount applications.
Cover TypeScrew Cover
KnockoutsYes
Nema Rating1
Class CodeP01
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
UL ListedYes
MaterialCarbon Steel
BOX SIZE5.650x12.900x12.650 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00786725317950
Pallet Height49.700 in
Pallet Weight762.840 lb.
NAICS Code3359326101
Certifications
- Buy American Compliant
- Contact Manufacturer
- Certified Listed
- cULus
ListingsUL, CSA
EU RoHS IndicatorYes
