Wiegmann SC121206 N1 Screw-Cover 12X12X6 Carbon Steel - Gray
- MPN: SC121206
- UPC: 786725314003
- PPN: HBL-SC121206
- UNSPSC: 39121324
CAD
$134.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

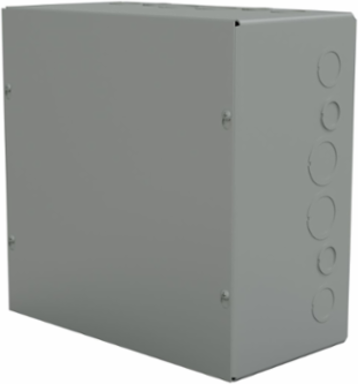

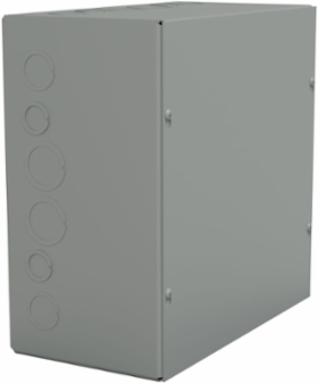

N1 Screw-Cover 12X12X6 Carbon Steel - Gray
Features

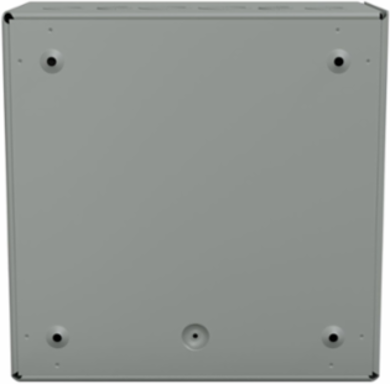

- Fabricated from 16 gauge steel. Flat, removable covers fastened with plated steel screws. Cover design permits easy removal without extracting cover screws. Mounting holes on back of box. Removable concentric knockouts on all four sides.
Documentation & Downloads
Specifications
Key Specifications
- Cubic Capacity
- 864 cu.in
- Mounting
- Embossed Mounting Holes
- Standard
- cULus
- Stock Indicator
- S - Shelf Stock
- Actual Height
- 12.25 in
- Color
- Ansi-61 Gray Textured
- Height
- 12 in
- Width
- 12 in
- Cable Entry
- Knock Outs
- Finish Type
- Textured
- Mounting Type
- Embossed Mounting Holes
- Type
- Enclosure
- Description - Invoice
- SC PULL BOX,CS,12X12X6
- Harmonization Code
- 7326909999
- Lead Time
- 7 wk
- Order Multiple
- 1 EA
- Sub Class Code
- P01P018
- Construction
- Spot Welded
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 12.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 3
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
FinishTextured
NEMA Rating1
ARRA CompliantContact Manufacturer
Country of OriginMexico
Actual Width12.125 in
Depth6 in
Weight12 lb.
ApplicationDesigned for use as a junction box and pull box in commercial and general industrial applications. Flush covers must be ordered separately for flush mount applications.
Cover TypeScrew Cover
KnockoutsYes
Nema Rating1
Class CodeP01
Freight Class Code06316009
Image Actual Or RepresentativeA
MSDS FlagNo
Returnable IndicatorYes
UL ListedYes
MaterialCarbon Steel
BOX SIZE7.500x13.250x12.800 (in)
Carton - Number of Sub Packs3
Carton - SCC-14 Next Lower Level Sub Pack00786725314003
Pallet Height49.500 in
Pallet Weight631.980 lb.
NAICS Code3359326101
Certifications
- Buy American Compliant
- Contact Manufacturer
- Certified Listed
- cULus
ListingsUL, CSA
EU RoHS IndicatorYes
