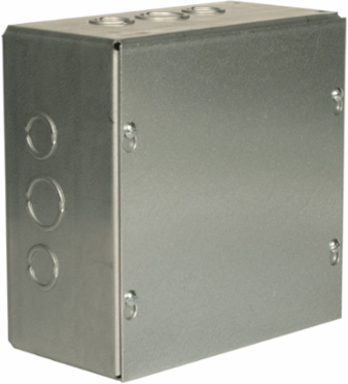

Wiegmann SC121806G N1 Screw-Cover 12X18X6 Carbon Steel - Galvanized
Wiegmann SC121806G N1 Screw-Cover 12X18X6 Carbon Steel - Galvanized
- MPN: SC121806G
- UPC: 786725318452
- PPN: HBL-SC121806G
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$169.02/ EA
Description
N1 Screw-Cover 12X18X6 Carbon Steel - Galvanized
Features

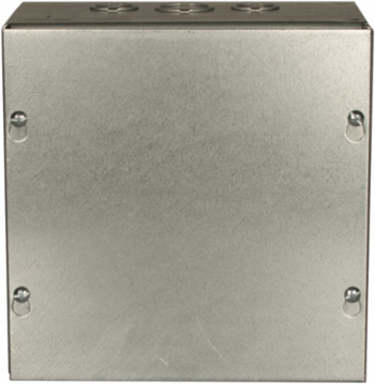

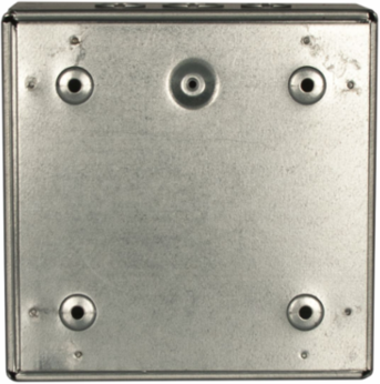

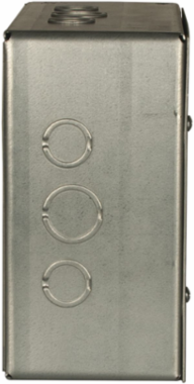

- Fabricated from 16 gauge G-90 pre-galvanized steel. Flat, removable covers fastened with plated steel screws. Cover design permits easy removal without extracting cover screws. Mounting holes on back of box. Removable concentric knockouts on all four sides.
Specifications
Specifications
- Actual Height
- 18.125 in
- Buy American Compliant
- Contact Manufacturer
- Each - Width
- 16.150 in
- Cable Entry
- Knock Outs
- Cubic Capacity
- 1296 cu.in
- Finish
- Galvanized
- Mounting
- Embossed Mounting Holes
- Standard
- cULus
- Width
- 12 in
- Finish Type
- Galvanized
- Mounting Type
- Embossed Mounting Holes
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- SC,PULL BOX,GALV,12X18X6
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- UL Listed
- Yes
- Material
- Carbon Steel
- BOX SIZE
- 7.850x19.200x16.150 (in)
- Carton - Number of Sub Packs
- 3
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725318452
- Pallet Height
- 43.750 in
- Pallet Weight
- 378.400 lb.
Actual Width12.125 in
Country of OriginMX
ApplicationDesigned for use as a junction box and pull box in commercial and general industrial applications. Flush covers must be ordered separately for flush mount applications.
Cover TypeScrew Cover
Depth6 in
Height18 in
NEMA Rating1
TypeEnclosure
Weight15.33 lb.
KnockoutsYes
Nema Rating1
Class CodeP01
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP01P018
ConstructionSpot Welded
Base Unit of MeasureEA
Carton - Gross Weight per Pack15.330 lb.
Carton - Pack DescriptionCarton
Carton - Total Units3
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- Certified Listed
- cULus
- Listings
- UL, CSA
EU RoHS IndicatorNo
