Wiegmann SC122406 N1 Screw-Cover 12X24X6 Carbon Steel - Gray
- MPN: SC122406
- UPC: 786725846542
- PPN: HBL-SC122406
- UNSPSC: 39121324
CAD
$206.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

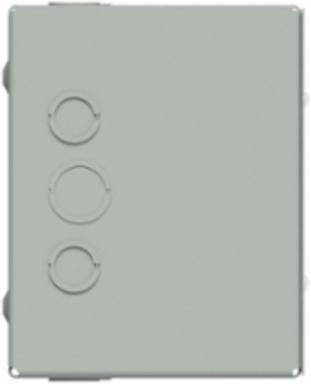

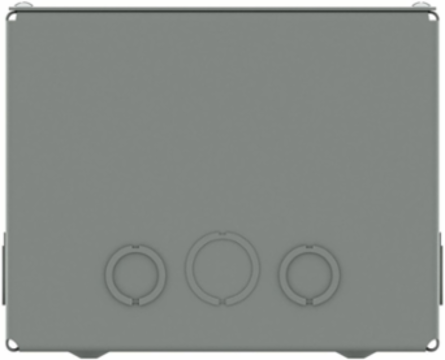

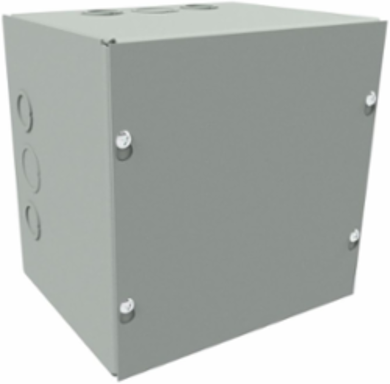

N1 Screw-Cover 12X24X6 Carbon Steel - Gray
Features

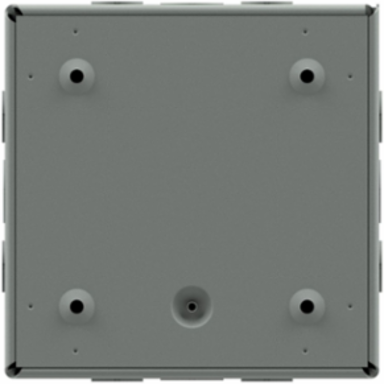

- Fabricated from 16 gauge steel. Flat, removable covers fastened with plated steel screws. Cover design permits easy removal without extracting cover screws. Mounting holes on back of box. Removable concentric knockouts on all four sides.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Actual Width
- 12.125 in
- Cable Entry
- Knock Outs
- Cover Type
- Screw Cover
- Depth
- 6 in
- Height
- 24 in
- NEMA Rating
- 1
- Type
- Enclosure
- Weight
- 30 lb.
- Knockouts
- Yes
- Nema Rating
- 1
- Class Code
- P01
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P01P018
- Construction
- Spot Welded
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 30.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1 EA
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Actual Height24.125 in
ApplicationDesigned for use as a junction box and pull box in commercial and general industrial applications. Flush covers must be ordered separately for flush mount applications.
ColorAnsi-61 Gray Textured
Cubic Capacity1728 cu.in
FinishTextured
MountingEmbossed Mounting Holes
StandardcULus
Width12 in
Finish TypeTextured
Mounting TypeEmbossed Mounting Holes
ARRA CompliantContact Manufacturer
Description - InvoiceSC PULL BOX,CS,12X24X6
Harmonization Code7326908688
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
UL ListedYes
MaterialCarbon Steel
BOX SIZE7.150x25.050x13.150 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725846542
Pallet Height47.400 in
Pallet Weight382.500 lb.
NAICS Code3359326101
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- No
Certified ListedcULus
ListingsUL, CSA
