Wiegmann SC242404 N1 Screw-Cover 24X24X4 Carbon Steel - Gray
- MPN: SC242404
- UPC: 786725846993
- PPN: HBL-SC242404
- UNSPSC: 39121324
CAD
$431.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

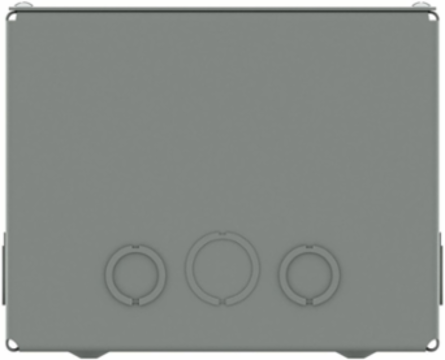

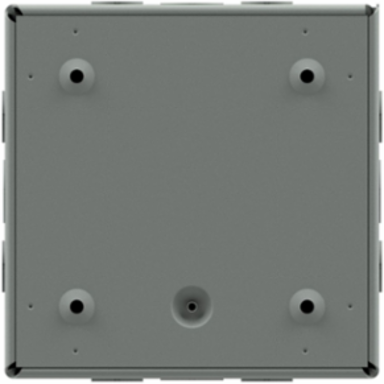

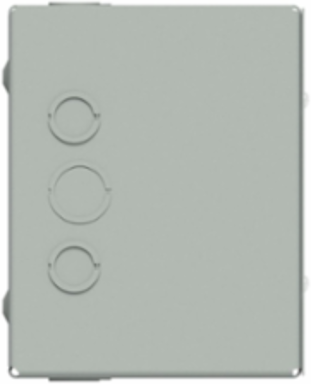

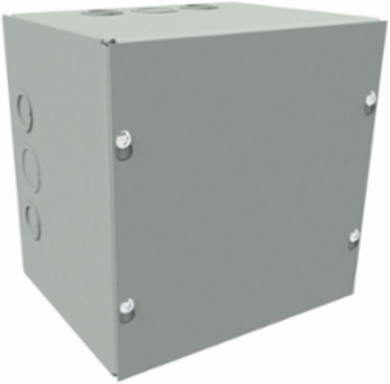

N1 Screw-Cover 24X24X4 Carbon Steel - Gray
Features
- Fabricated from 14 gauge steel. Flat, removable covers fastened with plated steel screws. Cover design permits easy removal without extracting cover screws. Mounting holes on back of box. Removable concentric knockouts on all four sides.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Actual Height
- 24.125 in
- Application
- Designed for use as a junction box and pull box in commercial and general industrial applications. Flush covers must be ordered separately for flush mount applications.
- Color
- Ansi-61 Gray Textured
- Cubic Capacity
- 2304 cu.in
- Finish
- Textured
- Mounting
- Embossed Mounting Holes
- Standard
- cULus
- Width
- 24 in
- Finish Type
- Textured
- Mounting Type
- Embossed Mounting Holes
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- SC,CS,WKO'S, 24X24X04
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- UL Listed
- Yes
- Material
- Carbon Steel
- BOX SIZE
- 4.550x24.550x24.300 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725846993
- Pallet Height
- 50.000 in
- Pallet Weight
- 358.500 lb.
- NAICS Code
- 3359326101
Actual Depth4.188 in
Actual Width24.125 in
Cable EntryKnock Outs
Cover TypeScrew Cover
Depth4 in
Height24 in
NEMA Rating1
TypeEnclosure
Weight37 lb.
KnockoutsYes
Nema Rating1
Class CodeP01
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP01P018
ConstructionSpot Welded
Base Unit of MeasureEA
Carton - Gross Weight per Pack37.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1 EA
Pallet Length40.000 in
Pallet Width48.000 in
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- No
Certified ListedcULus
ListingsUL, CSA
