Wiegmann SC080804G N1 Screw-Cover 8X8X4 Carbon Steel - Galvanized
- MPN: SC080804G
- UPC: 786725316953
- PPN: HBL-SC080804G
- UNSPSC: 39121324
CAD
$67.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

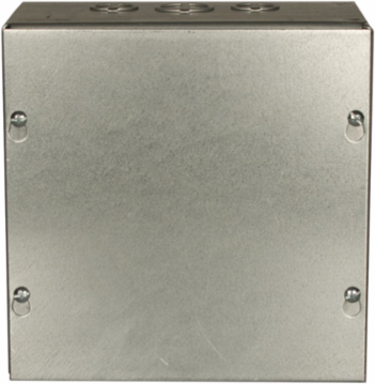

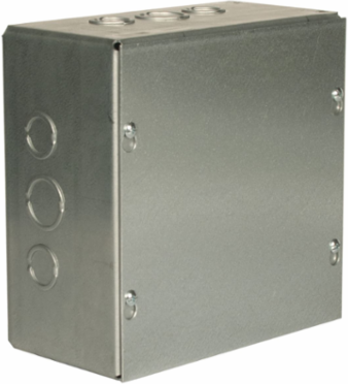

N1 Screw-Cover 8X8X4 Carbon Steel - Galvanized
Features

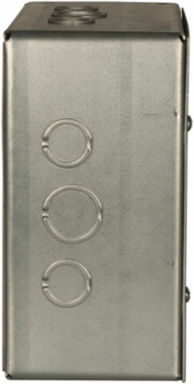

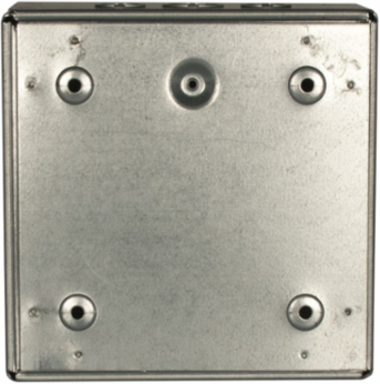

- Fabricated from 16 gauge G-90 pre-galvanized steel. Flat, removable covers fastened with plated steel screws. Cover design permits easy removal without extracting cover screws. Mounting holes on back of box. Removable concentric knockouts on all four sides.
Documentation & Downloads
Specifications
Key Specifications
- Cubic Capacity
- 256 cu.in
- Mounting
- Embossed Mounting Holes
- Standard
- cULus
- Stock Indicator
- S - Shelf Stock
- Actual Depth
- 4.188 in
- Actual Width
- 8.125 in
- Height
- 8 in
- Width
- 8 in
- Cable Entry
- Knock Outs
- Finish Type
- Galvanized
- Mounting Type
- Embossed Mounting Holes
- Type
- Enclosure
- Description - Invoice
- SC,PULL BOX,GALV,8X8X4
- Harmonization Code
- 7326909999
- Lead Time
- 7 wk
- Order Multiple
- 1 EA
- Sub Class Code
- P01P018
- Construction
- Spot Welded
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 4.900 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5
- Pallet Length
- 40.000 in
- Pallet Width
- 48.000 in
FinishGalvanized
NEMA Rating1
ARRA CompliantContact Manufacturer
Country of OriginMexico
Actual Height8.125 in
Depth4 in
Weight4.9 lb.
ApplicationDesigned for use as a junction box and pull box in commercial and general industrial applications. Flush covers must be ordered separately for flush mount applications.
Cover TypeScrew Cover
KnockoutsYes
Nema Rating1
Class CodeP01
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
UL ListedYes
MaterialCarbon Steel
BOX SIZE4.700x10.350x9.300 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00786725316953
Pallet Height46.800 in
Pallet Weight808.920 lb.
NAICS Code3359326101
Certifications
- Buy American Compliant
- Contact Manufacturer
- Certified Listed
- cULus
ListingsUL, CSA
EU RoHS IndicatorYes
