Wiegmann SC080804 N1 Screw-Cover 8X8X4 Carbon Steel - Gray
- MPN: SC080804
- UPC: 786725312900
- PPN: HBL-SC080804
- UNSPSC: 39121324
CAD
$67.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

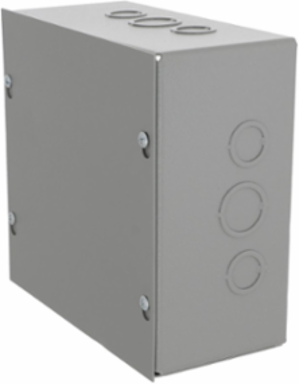

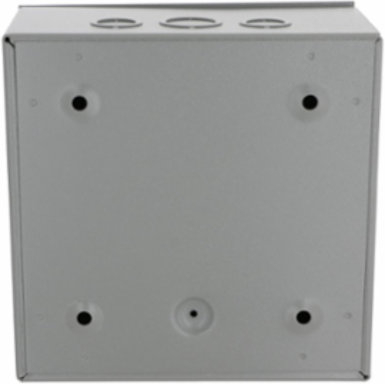

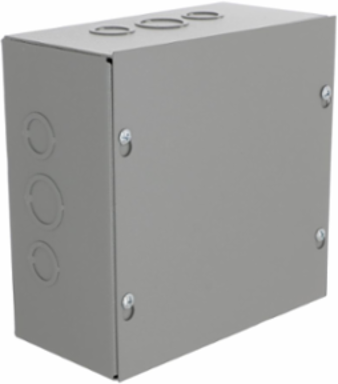

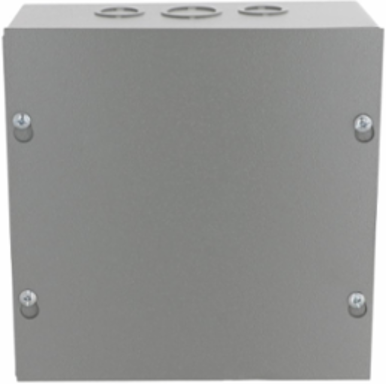

N1 Screw-Cover 8X8X4 Carbon Steel - Gray
Features
- Fabricated from 16 gauge steel. Flat, removable covers fastened with plated steel screws. Cover design permits easy removal without extracting cover screws. Mounting holes on back of box. Removable concentric knockouts on all four sides.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Actual Height
- 8.125 in
- Application
- Designed for use as a junction box and pull box in commercial and general industrial applications. Flush covers must be ordered separately for flush mount applications.
- Color
- Ansi-61 Gray Textured
- Cubic Capacity
- 256 cu.in
- Finish
- Textured
- Mounting
- Embossed Mounting Holes
- Standard
- cULus
- Width
- 8 in
- Finish Type
- Textured
- Material type
- Carbon Steel
- Nema Rating
- 1
- Class Code
- P01
- Freight Class Code
- 06316009
- Image Actual Or Representative
- A
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- UL Listed
- Yes
- Material
- Carbon Steel
- BOX SIZE
- 4.700x10.300x9.450 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725312900
- Pallet Height
- 46.800 in
- Pallet Weight
- 742.680 lb.
- NAICS Code
- 3359326101
Actual Depth4.188 in
Actual Width8.125 in
Cable EntryKnock Outs
Cover TypeScrew Cover
Depth4 in
Height8 in
NEMA Rating1
TypeEnclosure
Weight4.9 lb.
KnockoutsYes
Mounting TypeEmbossed Mounting Holes
ARRA CompliantContact Manufacturer
Description - InvoiceSC PULL BOX,CS,8X8X4
Harmonization Code7326908688
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP01P018
ConstructionSpot Welded
Base Unit of MeasureEA
Carton - Gross Weight per Pack4.900 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- Yes
Certified ListedcULus
ListingsUL, CSA
