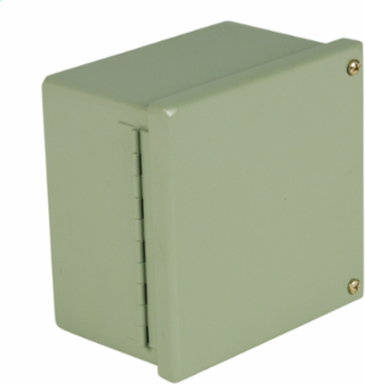

Wiegmann WA060604GIE N12 JIC Hinged Screw-Cover 6X6X4 Carbon Steel - Gray
- MPN: WA060604GIE
- UPC: 786725442003
- PPN: HBL-WA060604GIE
- UNSPSC: 39121324
CAD
$195.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
N12 JIC Hinged Screw-Cover 6X6X4 Carbon Steel - Gray
Features
- Construction: fabricated from 14 gauge steel. Continuously welded seams ground smooth, less knockouts or holes. Lids are sealed with closed cell oil resistant neoprene gasket. Cover is secured by continuous hinge. Captivated door screws thread into sealed wells. No mounting feet or mounting holes are provided. Weldnuts are provided to mount option panels. Grounding provisions.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Color
- Ansi-61 Gray Textured
- Cubic Capacity
- 144 cu.in
- Finish
- Textured
- Mounting
- Wall Mount
- Standard
- cULus
- Width
- 6 in
- Finish Type
- Textured
- Mounting Type
- Wall Mount
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- JIC,CS,OIL TIGHT,6X6X4
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- UL Listed
- Yes
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 4.200 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1 EA
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
ApplicationDesigned for use as instrument housings, electrical control enclosures, terminal wiring boxes, or electrical junction boxes. Provides protection from dirt, dust, oil, and water.
Cover TypeHinged Screw Cover
Depth4 in
Height6 in
NEMA Rating12
TypeEnclosure
Weight4.2 lb.
Housing Finish14 gauge carbon steel
Nema Rating12
Class CodeP04
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP04P067
MaterialCarbon Steel
BOX SIZE4.750x8.000x7.250 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725442003
Pallet Height47.250 in
Pallet Weight963.000 lb.
NAICS Code3359326101
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- No
Certified ListedcULus
ListingsUL, CSA
