Wiegmann B141206 N12 JIC Lift-Off Cover 14X12X6 Carbon Steel - Gray
- MPN: B141206
- UPC: 786725330904
- PPN: HBL-B141206
- UNSPSC: 39121324
CAD
$406.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

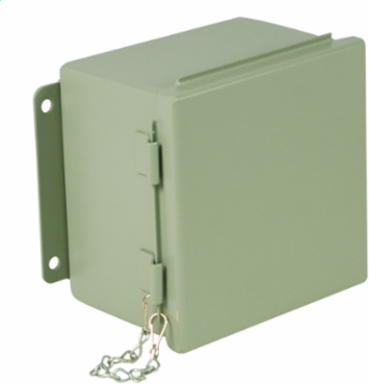

N12 JIC Lift-Off Cover 14X12X6 Carbon Steel - Gray
Features
- Bodies fabricated from 14 gauge and doors fabricated from 16 gauge steel. Continuously welded seams ground smooth, less knockouts or holes. Lids are sealed with closed cell oil resistant neoprene gasket. External mounting plates, top and bottom of enclosure. Weldnuts are provided to secure optional back panel. External screw clamps are quick and easy to operate. Lift off cover design. Chain holds cover to box when cover is removed. Grounding provisions provided.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Color | Ansi-61 Gray Textured |
| Cubic Capacity | 1008 cu.in |
| Finish | Textured |
| Mounting | External Mounting Plates |
| Standard | cULus |
| Width | 12 in |
| Engineering Drawing 3 Display Text | MOD Center Drawings Instructions |
| Mounting Type | External Mounting Plates |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | JIC,CS,CLAMP COVER,14X12X6 |
| Harmonization Code | 7326908688 |
| Lead Time | 21 wk |
| Order Multiple | 1 EA |
| Stock Indicator | S - Shelf Stock |
| Latches Type | Clamps |
| Construction | Continuously Welded Seams |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 17.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 EA |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| Application | The Hubbell Wiegmann B Series JIC box is a standard of the automotive industry but has wide application in other industries. The box incorporates a chain secured lift off cover and is designed to safeguard components against exposure to dust, dirt, oil, a |
|---|---|
| Cover Type | Lift Off |
| Depth | 6 in |
| Height | 14 in |
| NEMA Rating | 12 |
| Type | Enclosure |
| Weight | 17 lb. |
| Finish Type | Textured |
| Nema Rating | 12 |
| Class Code | P04 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Sub Class Code | P04P067 |
| UL Listed | Yes |
| Material | Carbon Steel |
| BOX SIZE | 7.850x17.175x14.150 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00786725330904 |
| Pallet Height | 43.750 in |
| Pallet Weight | 440.325 lb. |
| NAICS Code | 3359326101 |
Certifications
| Buy American Compliant | Contact Manufacturer |
|---|---|
| Listings | UL, CSA |
| Certified Listed | cULus |
|---|
