Wiegmann B080804 N12 JIC Lift-Off Cover 8X8X4 Carbon Steel - Gray
- MPN: B080804
- UPC: 786725330683
- PPN: HBL-B080804
- UNSPSC: 39121324
CAD
$205.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

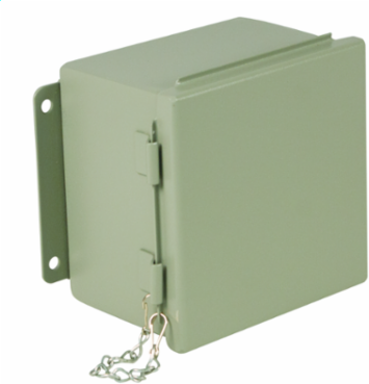

N12 JIC Lift-Off Cover 8X8X4 Carbon Steel - Gray
Features
- Bodies fabricated from 14 gauge and doors fabricated from 16 gauge steel. Continuously welded seams ground smooth, less knockouts or holes. Lids are sealed with closed cell oil resistant neoprene gasket. External mounting plates, top and bottom of enclosure. Weldnuts are provided to secure optional back panel. External screw clamps are quick and easy to operate. Lift off cover design. Chain holds cover to box when cover is removed. Grounding provisions provided.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Color
- Ansi-61 Gray Textured
- Cubic Capacity
- 256 cu.in
- Finish
- Textured
- Mounting
- External Mounting Plates
- Standard
- cULus
- Width
- 8 in
- Engineering Drawing 3 Display Text
- MOD Center Drawings Instructions
- Mounting Type
- External Mounting Plates
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- JIC,CS,CLAMP COVER,8X8X4
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- Latches Type
- Clamps
- Construction
- Continuously Welded Seams
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 6.830 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1 EA
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
ApplicationThe B Series JIC box is a standard of the automotive industry but has wide applications in other industries. The box incorporates a chain secured lift-off cover and is designed to safeguard components against dust, dirt, oil and water.
Cover TypeLift Off
Depth4 in
Height8 in
NEMA Rating12
TypeEnclosure
Weight6.83 lb.
Finish TypeTextured
Nema Rating12
Class CodeP04
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP04P067
UL ListedYes
MaterialCarbon Steel
BOX SIZE4.750x10.250x9.300 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725330683
Pallet Height37.750 in
Pallet Weight673.320 lb.
NAICS Code3359326101
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- Yes
Certified ListedcULus
ListingsUL, CSA
