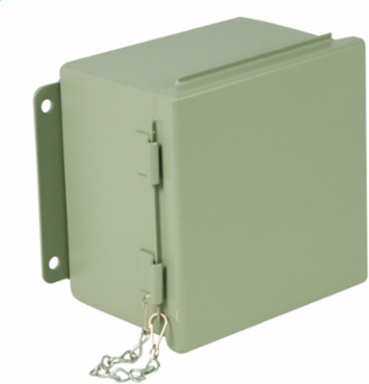

Wiegmann B060604 N12 JIC Lift-Off Cover 6X6X4 Carbon Steel - Gray
- MPN: B060604
- UPC: 786725330508
- PPN: HBL-B060604
- UNSPSC: 39121324
CAD
$175.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
N12 JIC Lift-Off Cover 6X6X4 Carbon Steel - Gray
Features
- Bodies fabricated from 14 gauge and doors fabricated from 16 gauge steel. Continuously welded seams ground smooth, less knockouts or holes. Lids are sealed with closed cell oil resistant neoprene gasket. External mounting plates, top and bottom of enclosure. Weldnuts are provided to secure optional back panel. External screw clamps are quick and easy to operate. Lift off cover design. Chain holds cover to box when cover is removed. Grounding provisions provided.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Color
- Ansi-61 Gray Textured
- Cubic Capacity
- 144 cu.in
- Finish
- Textured
- Mounting
- External Mounting Plates
- Standard
- cULus
- Width
- 6 in
- Engineering Drawing 3 Display Text
- MOD Center Drawings Instructions
- Material type
- Carbon Steel
- Nema Rating
- 12
- Class Code
- P04
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P04P067
- UL Listed
- Yes
- Material
- Carbon Steel
- BOX SIZE
- 4.800x10.450x9.500 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725330508
- Pallet Height
- 47.700 in
- Pallet Weight
- 615.960 lb.
- NAICS Code
- 3359326101
ApplicationThe B Series JIC box is a standard of the automotive industry but has wide applications in other industries. The box incorporates a chain secured lift-off cover and is designed to safeguard components against dust, dirt, oil and water.
Cover TypeLift Off
Depth4 in
Height6 in
NEMA Rating12
TypeEnclosure
Weight4.9 lb.
Finish TypeTextured
Mounting TypeExternal Mounting Plates
ARRA CompliantContact Manufacturer
Description - InvoiceJIC,CS,CLAMP COVER,6X6X4
Harmonization Code7326908688
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
Latches TypeClamps
ConstructionContinuously Welded Seams
Base Unit of MeasureEA
Carton - Gross Weight per Pack4.900 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1 EA
Pallet Length40.000 in
Pallet Width48.000 in
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- Yes
Certified ListedcULus
ListingsUL, CSA
