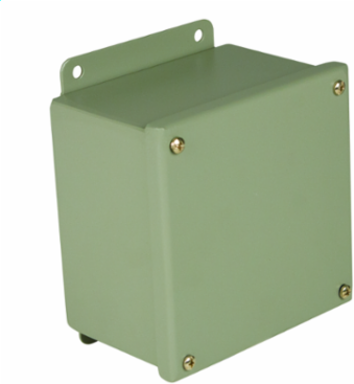

Wiegmann B100806SC N12 JIC Screw-Cover 10X8X6 Carbon Steel - Gray
- MPN: B100806SC
- UPC: 786725330737
- PPN: HBL-B100806SC
- UNSPSC: 39121324
CAD
$277.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
N12 JIC Screw-Cover 10X8X6 Carbon Steel - Gray
Features
- Bodies and doors fabricated from 14 gauge steel. Continuously welded seams ground smooth, less knockouts of holes. Lids are sealed with closed cell oil resistant neoprene gasket. External mounting plates, top and bottom of enclosure. Weldnuts are provided to secure optional back panel. Captivated cover screws are provided which thread into sealed wells to prevent leakage through cover. Grounding provisions provided.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Color
- Ansi-61 Gray Textured
- Cubic Capacity
- 480 cu.in
- Finish
- Textured
- Mounting
- External Mounting Plates
- Standard
- cULus
- Width
- 8 in
- Engineering Drawing 3 Display Text
- MOD Center Drawings Instructions
- Mounting Type
- External Mounting Plates
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- JIC,CS,SCREW COVER,10X8X6
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- UL Listed
- Yes
- Material
- Carbon Steel
- BOX SIZE
- 9.500x16.000x10.000 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725330737
- Pallet Height
- 42.500 in
- Pallet Weight
- 429.000 lb.
- NAICS Code
- 3359326101
ApplicationDesigned for use as instrument housings, electrical control enclosures, terminal wiring boxes, or electrical junction boxes. Provides protection from dirt, dust, oil, and water.
Cover TypeScrew Cover
Depth6 in
Height10 in
NEMA Rating12
TypeEnclosure
Weight9.5 lb.
Finish TypeTextured
Nema Rating12
Class CodeP04
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP04P067
ConstructionContinuously Welded Seams
Base Unit of MeasureEA
Carton - Gross Weight per Pack9.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1 EA
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- Yes
Certified ListedcULus
ListingsUL, CSA
