Wiegmann CTDD303612 N3R Double Door Hinged Cover 30 x 36 x 12 Inch Carbon Steel Enclosure
- MPN: CTDD303612
- UPC: 786725853953
- PPN: HBL-CTDD303612
- UNSPSC: 39121324
CAD
$2221.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

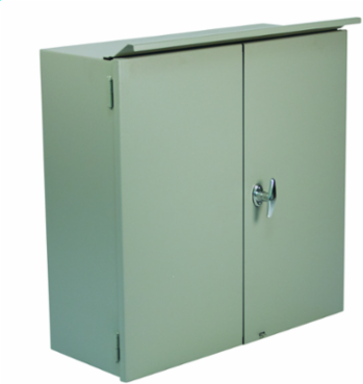

N3R CT Double Door Hinged-Cover 30X36X12 Carbon Steel - Gray
Features
- Manufactured from 12 gauge carbon steel
- Fully seam welded and ground smooth, with weep hole
- Drip shield
- Lift off hinges, gasketed doors
- Supplied with non-locking "T" handle
- Meter seal provisions
- Mounting holes in back
- Supplied with studs in back of enclosure to support optional wood sub panel
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Application
- Enclosures are designed as a housing for current and voltage transformers, recorders, meters, junction, service box, relay, and/or for terminal instrumentation.
- Cover Type
- Hinged Cover
- Depth
- 12 in
- Height
- 36 in
- NEMA Rating
- 3R
- Type
- Enclosure
- Weight
- 119 lb.
- Knockouts
- No
- Nema Rating
- 3R
- Class Code
- P01
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P01P001
- Construction
- Seam and Tack Welded
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 119.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1
Number of Doors (Fixed)2
ColorAnsi-61 Gray Textured
Cubic Capacity12960 cu.in
FinishTextured
MountingMounting Holes
StandardcULus
Width30 in
Finish TypeTextured
Mounting TypeMounting Holes
ARRA CompliantContact Manufacturer
Description - InvoiceCT,DD,CS,30X36X12
Harmonization Code7326908688
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
UL ListedYes
MaterialCarbon Steel
BOX SIZE36.000x12.000x30.000 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725853953
NAICS Code3359326101
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- No
Certified ListedcULus
ListingsUL, CSA
