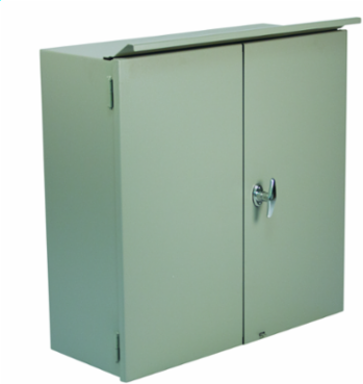

Wiegmann CTDD484816 N3R CT Double Door Hinged Cover 48 Inch x 48 Inch x 16 Inch Carbon Steel
- MPN: CTDD484816
- UPC: 786725854035
- PPN: HBL-CTDD484816
- UNSPSC: 39121324
CAD
$3395.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
N3R CT Double Door Hinged-Cover 48X48X16 Carbon Steel - Gray
Features
- Manufactured from 12 gauge carbon steel
- Fully seam welded and ground smooth, with weep hole
- Drip shield
- Lift off hinges, gasketed doors
- Supplied with non-locking "T" handle
- Meter seal provisions
- Mounting holes in back
- Supplied with studs in back of enclosure to support optional wood sub panel
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Application
- Enclosures are designed as a housing for current and voltage transformers, recorders, meters, junction, service box, relay, and/or for terminal instrumentation.
- Cover Type
- Hinged Cover
- Depth
- 16 in
- Height
- 48 in
- NEMA Rating
- 3R
- Type
- Enclosure
- Weight
- 314 lb.
- Knockouts
- No
- Mounting Type
- Mounting Holes
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- CT,DD,CS,48X48X16
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- UL Listed
- Yes
- Material
- Carbon Steel
- BOX SIZE
- 40.000x79.000x56.250 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725854035
- Pallet Height
- 44.500 in
- Pallet Weight
- 359.000 lb.
- NAICS Code
- 3359326101
Number of Doors (Fixed)2
ColorAnsi-61 Gray Textured
Cubic Capacity36864 cu.in
FinishTextured
MountingMounting Holes
StandardcULus
Width48 in
Finish TypeTextured
Material typeCarbon Steel
Nema Rating3R
Class CodeP01
Freight Class Code06111001
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP01P001
ConstructionSeam and Tack Welded
Base Unit of MeasureEA
Carton - Gross Weight per Pack191.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1 EA
Pallet Length79.000 in
Pallet Width56.250 in
Certifications
- Buy American Compliant
- Contact Manufacturer
- Listings
- UL, CSA
Certified ListedcULus
