Wiegmann RSC101004G N3R Screw-Cover Wall-Mount 10X10X4 Carbon Steel - Galvanized
- MPN: RSC101004G
- UPC: 786725400461
- PPN: HBL-RSC101004G
- UNSPSC: 39121324
CAD
$143.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

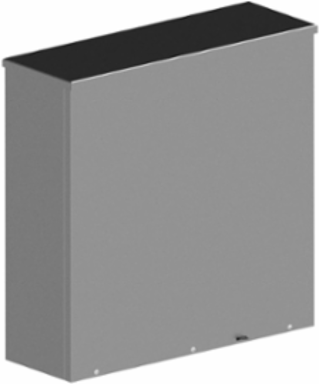

N3R Screw-Cover Wall-Mount 10X10X4 Carbon Steel - Galvanized
Features
- Bodies and doors fabricated from 16 gauge type 304 stainless steel
- Continuously welded seams ground smooth, less knockouts or holes
- Sealed with poured-in-place polyurenthane gasket
- External mounting plates, top and bottom of enclosure
- Stainless steel screws and clamps on four sides of cover assure watertight seal
- Grounding provisions provided
- Optional panels and terminak kits must be ordered separately
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Cable Entry | Knock Outs |
| Cubic Capacity | 400 cu.in |
| Finish | Galvanized |
| Mounting | Embossed Mounting Holes |
| Standard | cULus |
| Width | 10 in |
| Finish Type | Galvanized |
| Mounting Type | Embossed Mounting Holes |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | RSC,RAINPROOF,N3R,GALV,10X10X4 |
| Harmonization Code | 7326908688 |
| Lead Time | 21 wk |
| Order Multiple | 1 EA |
| Stock Indicator | S - Shelf Stock |
| UL Listed | Yes |
| Material | Carbon Steel |
| BOX SIZE | 10.750x22.350x10.450 (in) |
| Carton - Number of Sub Packs | 5 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00786725400461 |
| Pallet Height | 47.500 in |
| Pallet Weight | 1004.880 lb. |
| NAICS Code | 3359326101 |
| Application | Designed for use as wiring boxes and junction boxes. Provide protection in outdoor applications against rain, sleet, and snow, or indoors against dripping water. |
|---|---|
| Cover Type | Screw Cover |
| Depth | 4 in |
| Height | 10 in |
| NEMA Rating | 3R |
| Type | Enclosure |
| Weight | 8.4 lb. |
| Knockouts | Yes |
| Nema Rating | 3R |
| Class Code | P01 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Sub Class Code | P01P017 |
| Construction | Spot Welded |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 8.400 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 5 EA |
| Pallet Length | 40.000 in |
| Pallet Width | 48.000 in |
Certifications
| Buy American Compliant | Contact Manufacturer |
|---|---|
| Listings | UL, CSA |
| Certified Listed | cULus |
|---|
