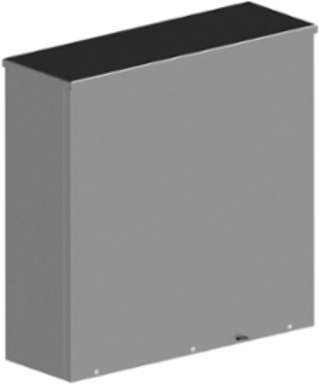

Wiegmann RSC080804G N3R Screw-Cover Wall-Mount 8X8X4 Carbon Steel - Galvanized
- MPN: RSC080804G
- UPC: 786725400324
- PPN: HBL-RSC080804G
- UNSPSC: 39121324
CAD
$105.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
N3R Screw-Cover Wall-Mount 8X8X4 Carbon Steel - Galvanized
Features
- Bodies and doors fabricated from 16 gauge type 304 stainless steel
- Continuously welded seams ground smooth, less knockouts or holes
- Sealed with poured-in-place polyurenthane gasket
- External mounting plates, top and bottom of enclosure
- Stainless steel screws and clamps on four sides of cover assure watertight seal
- Grounding provisions provided
- Optional panels and terminak kits must be ordered separately
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Cable Entry
- Knock Outs
- Cubic Capacity
- 256 cu.in
- Finish
- Galvanized
- Mounting
- Embossed Mounting Holes
- Standard
- cULus
- Width
- 8 in
- Finish Type
- Galvanized
- Mounting Type
- Embossed Mounting Holes
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- RSC,RAINPROOF,N3R,GALV,8X8X4
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- UL Listed
- Yes
- Material
- Carbon Steel
- BOX SIZE
- 4.950x10.350x9.500 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725400324
- Pallet Height
- 49.050 in
- Pallet Weight
- 939.240 lb.
- NAICS Code
- 3359326101
ApplicationDesigned for use as wiring boxes and junction boxes. Provide protection in outdoor applications against rain, sleet, and snow, or indoors against dripping water.
Cover TypeScrew Cover
Depth4 in
Height8 in
NEMA Rating3R
TypeEnclosure
Weight10.2 lb.
KnockoutsYes
Nema Rating3R
Class CodeP01
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP01P017
ConstructionSpot Welded
Base Unit of MeasureEA
Carton - Gross Weight per Pack10.200 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- Yes
Certified ListedcULus
ListingsUL, CSA
