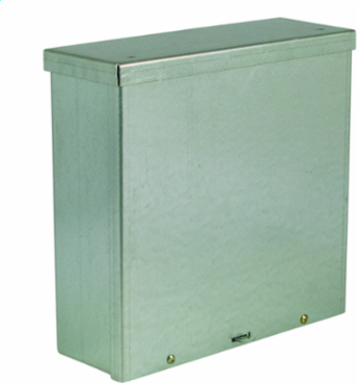

Wiegmann RSC040604G N3R Screw-Cover Wall-Mount 4X6X4 Carbon Steel - Galvanized
- MPN: RSC040604G
- UPC: 786725400126
- PPN: HBL-RSC040604G
- UNSPSC: 39121324
CAD
$80.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
N3R Screw-Cover Wall-Mount 4X6X4 Carbon Steel - Galvanized
Features
- Bodies and doors fabricated from 16 gauge pre-galvanized steel
- Drop shield top and smooth seamless sides and front
- Knockouts are standard on bottom
- A slip-on reversible cover is securely fastened with screws located along bottom edge
- No gasketing required
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Cable Entry | Knock Outs |
| Cubic Capacity | 96 cu.in |
| Finish | Galvanized |
| Mounting | Embossed Mounting Holes |
| Standard | cULus |
| Width | 4 in |
| Finish Type | Galvanized |
| Mounting Type | Embossed Mounting Holes |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | RSC,RAINPROOF,N3R,GALV,4X6X4 |
| Harmonization Code | 7326908688 |
| Lead Time | 21 wk |
| Order Multiple | 1 EA |
| Stock Indicator | S - Shelf Stock |
| UL Listed | Yes |
| Material | Carbon Steel |
| BOX SIZE | 4.650x6.450x4.900 (in) |
| Carton - Number of Sub Packs | 5 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00786725400126 |
| Pallet Height | 51.000 in |
| Pallet Weight | 1825.800 lb. |
| NAICS Code | 3359326101 |
| Application | Designed for use as wiring boxes and junction boxes. Provide protection in outdoor applications against rain, sleet, and snow, or indoors against dripping water. |
|---|---|
| Cover Type | Screw Cover |
| Depth | 4 in |
| Height | 6 in |
| NEMA Rating | 3R |
| Type | Enclosure |
| Weight | 6.4 lb. |
| Knockouts | Yes |
| Nema Rating | 3R |
| Class Code | P01 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | A |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Sub Class Code | P01P017 |
| Construction | Spot Welded |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 6.400 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 5 EA |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
Certifications
| Buy American Compliant | Contact Manufacturer |
|---|---|
| Listings | UL, CSA |
| Certified Listed | cULus |
|---|
