Wiegmann RSC151808 N3R Screw-Cover Wall-Mount 15X18X8 Carbon Steel - Gray
- MPN: RSC151808
- UPC: 786725403004
- PPN: HBL-RSC151808
- UNSPSC: 39121324
CAD
$394.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

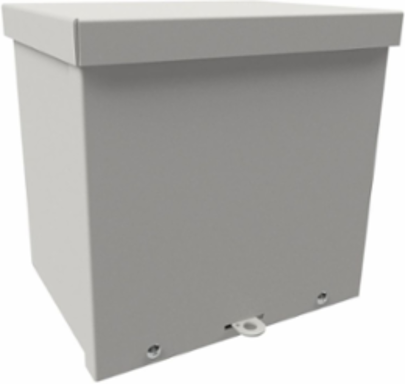

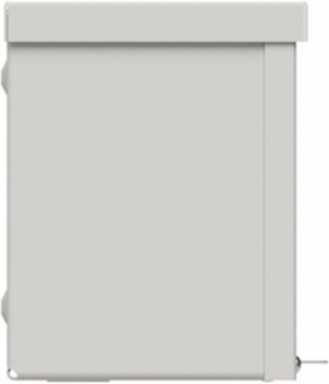

N3R Screw-Cover Wall-Mount 15X18X8 Carbon Steel - Gray
Features
- Bodies and doors fabricated from 16 gauge carbon steel
- Drop shiled top and smooth seamless sides and front
- A slip-on reversible cover is securely fastened with screws located along botoom edge
- No gasketing is required
- Hasp for padlocking or meter seal is provided
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Color
- Ansi-61 Gray Textured
- Cubic Capacity
- 2160 cu.in
- Finish
- Textured
- Mounting

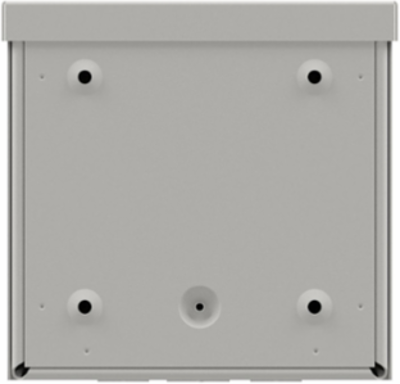

- Mounting Holes
- Standard
- cULus
- Width
- 15 in
- Finish Type
- Textured
- Mounting Type
- Mounting Holes
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- RSC,RAINPROOF,N3R,CS,15X18X8
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- UL Listed
- Yes
- Material
- Carbon Steel
- BOX SIZE
- 9.650x19.700x16.550 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725403004
- Pallet Height
- 33.450 in
- Pallet Weight
- 292.440 lb.
- NAICS Code
- 3359326101
ApplicationDesigned for use as wiring boxes and junction boxes. Provide protection in outdoor applications against rain, sleet, and snow, or indoors against dripping water.
Cover TypeScrew Cover
Depth8 in
Height18 in
NEMA Rating3R
TypeEnclosure
Weight25 lb.
KnockoutsNo
Nema Rating3R
Class CodeP01
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP01P017
ConstructionSpot Welded
Base Unit of MeasureEA
Carton - Gross Weight per Pack25.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1 EA
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- Yes
Certified ListedcULus
ListingsUL, CSA
