Wiegmann RSC080804 N3R Screw-Cover Wall-Mount 8X8X4 Carbon Steel - Gray
- MPN: RSC080804
- UPC: 786725400300
- PPN: HBL-RSC080804
- UNSPSC: 39121324
CAD
$105.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

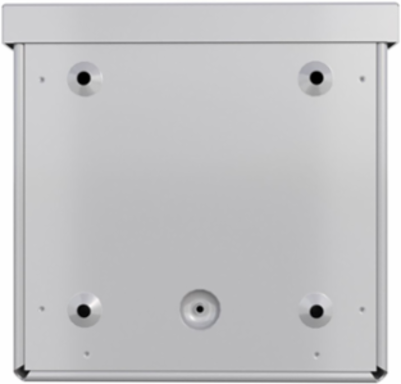

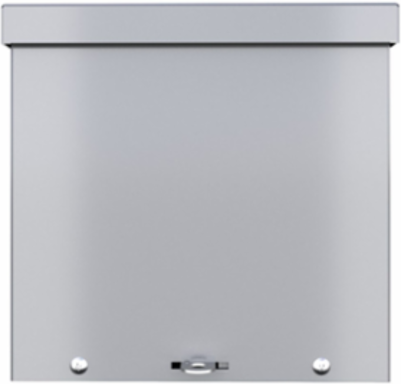

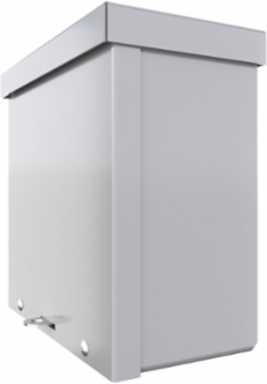

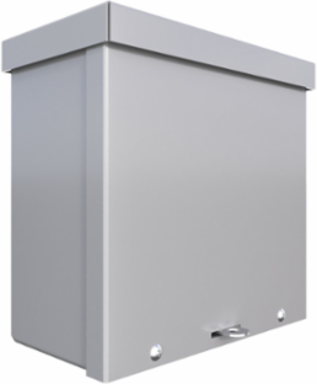

N3R Screw-Cover Wall-Mount 8X8X4 Carbon Steel - Gray
Features
- Bodies and doors fabricated from 16 gauge carbon steel
- Drop shield top and smooth seamless sides and front
- Knockouts are standard on bottom
- A slip-on reversible cover is securely fastened with screws located along bottom edge
- No gasketing is required
- Hasp for padlocking or meter seal is provided
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Cable Entry
- Knock Outs
- Cover Type
- Screw Cover
- Depth
- 4 in
- Height
- 8 in
- NEMA Rating
- 3R
- Type
- Enclosure
- Weight
- 5.1 lb.
- Knockouts
- Yes
- Mounting Type
- Embossed Mounting Holes
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- RSC,RAINPROOF,N3R,CS,8X8X4
- Harmonization Code
- 7326908688
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P01P017
- Construction
- Spot Welded
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 5.100 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
ApplicationDesigned for use as wiring boxes and junction boxes. Provide protection in outdoor applications against rain, sleet, and snow, or indoors against dripping water.
ColorAnsi-61 Gray Textured
Cubic Capacity256 cu.in
FinishTextured
MountingEmbossed Mounting Holes
StandardcULus
Width8 in
Finish TypeTextured
Material typeCarbon Steel
Nema Rating3R
Class CodeP01
Freight Class Code06316009
Image Actual Or RepresentativeA
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
UL ListedYes
MaterialCarbon Steel
BOX SIZE5.050x10.650x9.300 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00786725400300
Pallet Height49.950 in
Pallet Weight907.560 lb.
NAICS Code3359326101
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- Yes
Certified ListedcULus
ListingsUL, CSA
