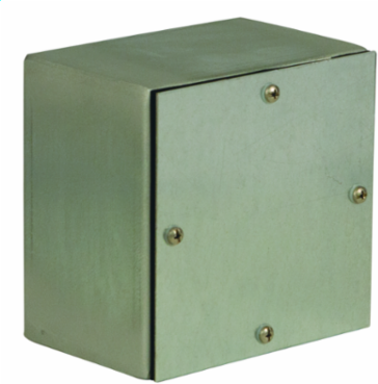

Wiegmann WA121204GSCG N4 Gasketed Screw-Cover 12X12X4 Carbon Steel - Galvanized
- MPN: WA121204GSCG
- UPC: 786725848744
- PPN: HBL-WA121204GSCG
- UNSPSC: 39121324
CAD
$358.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
N4 Gasketed Screw-Cover 12X12X4 Carbon Steel - Galvanized
Features
- Bodies and covers fabricated from 14 gauge G-9- grade galvanized steel
- Seams are continuously welded and ground smooth
- Covers contain closed cell oil resistant neoprene gasket
- Enclosure comes with stainless steel cover screws which thread into seals wells to prevent liquid, dust, etc. from entering into the box through the screw holes
- Ground stud located in door
- No holes, knockout, or rear mounting holes
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Actual Height
- 4.250 in
- Application
- Designed for use as wiring box, junction box, pull box, and terminal box in many indoor or outdoor applications where dust or moisture is a problem.
- Cubic Capacity
- 208 cu.in
- Finish
- Galvanized
- NEMA Rating
- 4
- Type
- Enclosure
- Weight
- 12 lb.
- Nema Rating
- 4
- Class Code
- P01
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P01P006
- Construction
- Continuously Welded Seams
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 12.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1 EA
- Pallet Length
- 40.000 in
- Pallet Width
- 48.000 in
Actual Depth4.25 in
Actual Width12.630 in
Cover TypeScrew Cover
Depth4 in
Height4 in
StandardcULus
Width13 in
Finish TypeGalvanized
ARRA CompliantContact Manufacturer
Description - InvoiceSC,BOX,GASKETED,GALV,12X12X4
Harmonization Code7326908688
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
UL ListedYes
MaterialCarbon Steel
BOX SIZE5.500x12.950x12.600 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725848744
Pallet Height48.500 in
Pallet Weight828.360 lb.
NAICS Code3359326101
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- No
Certified ListedcULus
ListingsUL
