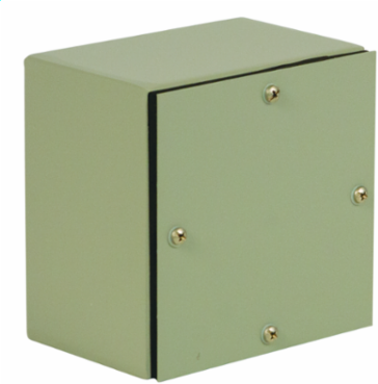

Wiegmann WA121204GSC N4 Gasketed Screw-Cover 12X12X4 Carbon Steel - Gray
Wiegmann WA121204GSC N4 Gasketed Screw-Cover 12X12X4 Carbon Steel - Gray
- MPN: WA121204GSC
- UPC: 786725848737
- PPN: HBL-WA121204GSC
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$379.26/ EA
Description
N4 Gasketed Screw-Cover 12X12X4 Carbon Steel - Gray
Features
- Bodies and covers fabricated from 14 gauge carbon steel
- Seams are continuously welded and ground smooth
- Cover contains closed cell oil resistant neoprene gasket
- Enclosure comes with stainless steel cover screws which thread into sealed wells to prevent liquid, dust, etc. from entering into the box through the screw holes
- Ground stud located in door
- No holes, knockout, or rear mounting holes
Specifications
Specifications
- Country of Origin
- Mexico
- Actual Height
- 4.250 in
- Application
- Designed for use as wiring box, junction box, pull box, and terminal box in many indoor or outdoor applications where dust or moisture is a problem.
- Cover Type
- Screw Cover
- Depth
- 4 in
- Height
- 4 in
- Standard
- cULus
- Width
- 13 in
- Engineering Drawing 3 Display Text
- MOD Center Drawings Instructions
- Nema Rating
- 4
- Class Code
- P01
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P01P006
- Construction
- Continuously Welded Seams
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 12.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1 EA
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Actual Depth4.25 in
Actual Width12.630 in
ColorAnsi-61 Gray Textured
Cubic Capacity208 cu.in
FinishTextured
NEMA Rating4
TypeEnclosure
Weight12 lb.
Finish TypeTextured
ARRA CompliantContact Manufacturer
Description - InvoiceSC,BOX,GASKETED,MP,SW,12X12X4
Harmonization Code7326908688
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
UL ListedYes
MaterialCarbon Steel
BOX SIZE6.000x13.000x13.000 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725848737
Pallet Height42.000 in
Pallet Weight740.000 lb.
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- No
Certified ListedcULus
ListingsUL
