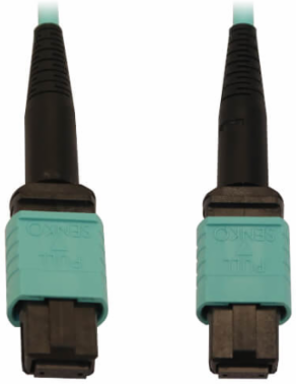

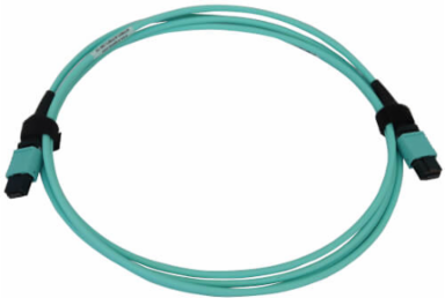

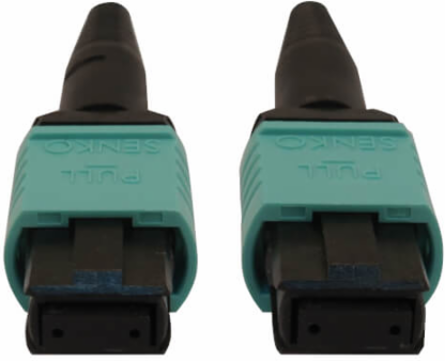

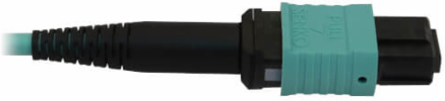

Tripp Lite N844B02M12P MTP/MPO Fiber Optic Cable, 12 Fiber, Multimode OM3 50/125, F/F, LSZH, Aqua, 2 m (6.6 ft)
- MPN: N844B02M12P
- UPC: 037332272874
- PPN: TRP-N844B-02M-12-P
CAD
$210.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
40/100/400G Multimode 50/125 OM3 Fiber Optic Cable (12F MTP/MPO-PC F/F), LSZH, Aqua, 2 m (6.6 ft.)
Documentation & Downloads
Specifications
Dimensions
- Cable Length
- 2 m (6.6 ft)
- Core Diameter
- 50.0
- Primary Coating Diameter
- 245.0
- Minimum Bend Radius
- 20 mm (Dynamic); 10 mm (Static)
- Side A - Connector
- 12F MPO (Female)
Number of Fibers12
Clad Diameter125.0
Cable Outer Diameter3.0 mm
Optical PortMPO/MTP
Side B - Connector12F MPO (Female)
Performance
- Network Compatibility
- 40 Gbps; 100 Gbps; 400 Gbps
- Attenuation @ 850nm
- 3.5 dB/km
- Operating Temperature Range
- 14° to 140°F (-10° to 60°C)
- Operating Humidity Range
- 5% to 85% RH, Non-Condensing
Wavelength1300 nm; 850 nm
Attenuation @ 1300nm1.5 dB/km
Storage Temperature Range14° to 140°F (-10° to 60°C)
Storage Humidity Range5% to 85% RH, Non-Condensing
Material
- Technology
- Multimode
- Cable Jacket Material
- LSZH
- Cable Jacket Color
- Aqua
- Endface Polish
- PC
PolarityType B (cross)
Cable Jacket RatingOFNR
Connector ColorBlack
Reference
- Product Warranty Period
- Lifetime limited warranty
