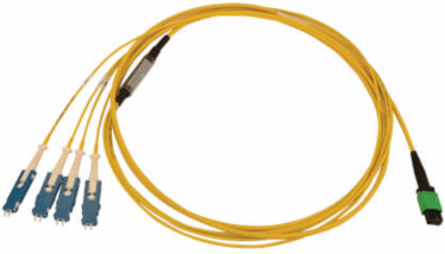

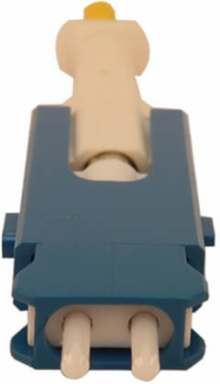

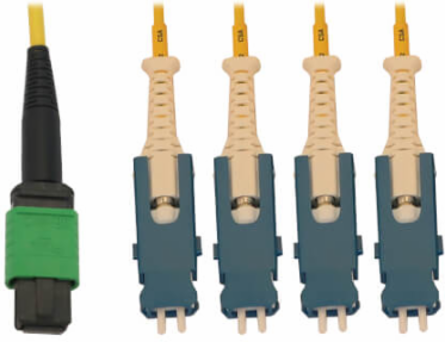

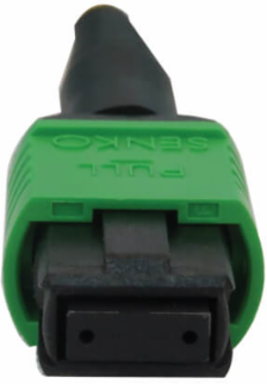

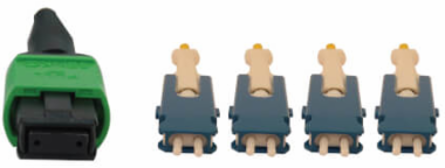

Tripp Lite N39002M4SAP 40/100/400G Singlemode 9/125 OS2 Breakout Fiber Optic Cable (12F MTP/MPO-APC to 4x Duplex SN-UPC F/M), LSZH, Yellow, 2 m (6.6 ft.)
- MPN: N39002M4SAP
- UPC: 037332274502
- PPN: TRP-N390-02M-4S-AP
CAD
$428.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
40/100/400G Singlemode 9/125 OS2 Breakout Fiber Optic Cable (12F MTP/MPO-APC to 4x Duplex SN-UPC F/M), LSZH, Yellow, 2 m (6.6 ft.)
Documentation & Downloads
Specifications
Dimensions
- Cable Length
- 2 m (6.6 ft)
- Cable Outer Diameter
- 3.0 mm
- Core Diameter
- 9.0
- Number of Fibers
- 12
- Side B - Connector 1
- (4) SN DUPLEX (MALE)
- Breakout
- Yes
Minimum Bend Radius20 mm (Dynamic); 10 mm (Static)
Clad Diameter125.0
Primary Coating Diameter245.0
Side A - Connector 112F MPO (FEMALE)
Optical PortMPO/MTP; SN
Performance
- Network Compatibility
- 40 Gbps; 100 Gbps; 400 Gbps
- Attenuation @ 1310NM
- 0.40 dB/km
- Operating Temperature Range
- 14° to 140°F (-10° to 60°C)
- Operating Humidity Range
- 5% to 85% RH, Non-Condensing
Wavelength1310nm; 1550nm
Attenuation @ 1550NM0.30 dB/km
Storage Temperature Range14° to 140°F (-10° to 60°C)
Storage Humidity Range5% to 85% RH, Non-Condensing
Reference
- Product Warranty Period
- Lifetime limited warranty
Material
- Technology
- Singlemode
- Cable Jacket Color
- Yellow
- Cable Jacket Material
- LSZH
Endface PolishAPC; UPC
Connector ColorBlack, Blue, Green, White
Cable Jacket RatingOFNR
