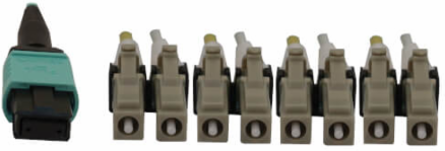

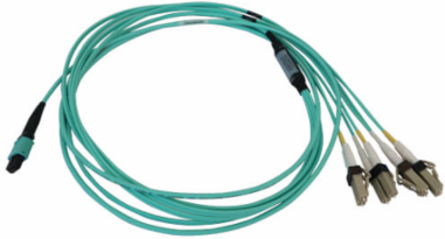

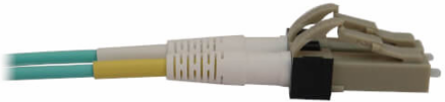

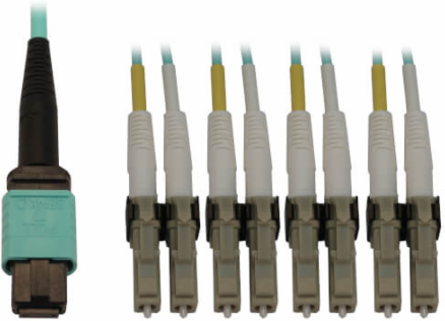

Tripp Lite N844X02M8LP Fiber Optic Cable, MTP/MPO-PC to 4x Duplex LC/PC, 12F Multimode OM3 50/125, LSZH, Aqua, 2 m
- MPN: N844X02M8LP
- UPC: 037332272928
- PPN: TRP-N844X-02M-8L-P
CAD
$305.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
40/100/400G Multimode 50/125 OM3 Fiber Optic Cable (12F MTP/MPO-PC to 4x Duplex LC/PC F/M), LSZH, Aqua, 2 m (6.6 ft.)
Documentation & Downloads
Specifications
Dimensions
| Cable Length | 2 m (6.6 ft) |
|---|---|
| Side A - Connector 1 | 12F MPO (Female) |
| Optical Port | LC; MPO/MTP |
| Polarity | Type B (cross) |
| Cable Outer Diameter | 3.0 mm |
| Core Diameter | 50.0 |
| Minimum Bend Radius | 20 mm (Dynamic); 10 mm (Static) |
| Number of Fibers | 8 |
|---|---|
| Side B - Connector 1 | (4) LC Duplex (Male) |
| Endface Polish | PC |
| Breakout | Yes |
| Clad Diameter | 125.0 |
| Primary Coating Diameter | 245.0 |
Performance
| Network Compatibility | 40 Gbps; 100 Gbps; 400 Gbps |
|---|---|
| Attenuation @ 850NM | 3.5 dB/km |
| Operating Temperature Range | 14° to 140°F (-10° to 60°C) |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Wavelength | 1300nm; 850nm |
|---|---|
| Attenuation @ 1300NM | 1.5 dB/km |
| Storage Temperature Range | 14° to 140°F (-10° to 60°C) |
| Storage Humidity Range | 5% to 85% RH, Non-Condensing |
Material
| Technology | Multimode |
|---|---|
| Connector Color | Beige; Black |
| Cable Jacket Rating | OFNR |
| Cable Jacket Color | Aqua |
|---|---|
| Cable Jacket Material | LSZH |
Reference
| Product Warranty Period | Lifetime limited warranty |
|---|
