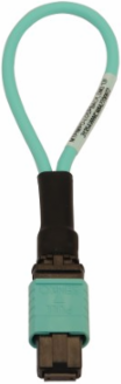

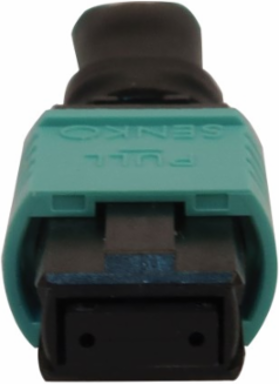

Tripp Lite N844BLOOP12F Loopback Fiber Optic Cable Tester, MTP/MPO Female, Multimode OM3 50/125, LSZH, Aqua
- MPN: N844BLOOP12F
- UPC: 037332272867
- PPN: TRP-N844B-LOOP-12F
CAD
$122.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Multimode 50/125 OM3 Loopback Fiber Optic Cable Tester (12F MTP/MPO Female), LSZH, Aqua
Documentation & Downloads
Specifications
Material
| Technology | Multimode |
|---|---|
| Connector Color | Black |
| Cable Jacket Rating | OFNR |
| Cable Jacket Color | Aqua |
|---|---|
| Cable Jacket Material | LSZH |
Performance
| Network Compatibility | 40 Gbps; 100 Gbps; 400 Gbps |
|---|---|
| Attenuation @ 850NM | 3.5 dB/km |
| Operating Temperature Range | 14° to 140°F (-10° to 60°C) |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Wavelength | 1300nm; 850nm |
|---|---|
| Attenuation @ 1300NM | 1.5 dB/km |
| Storage Temperature Range | 14° to 140°F (-10° to 60°C) |
| Storage Humidity Range | 5% to 85% RH, Non-Condensing |
Dimensions
| Number of Fibers | 6 |
|---|---|
| Side B - Connector 1 | 12F MTP/MPO (Female) |
| Endface Polish | PC |
| Clad Diameter | 125.0 |
| Primary Coating Diameter | 245.0 |
| Side A - Connector 1 | 12F MTP/MPO (Female) |
|---|---|
| Optical Port | MPO/MTP |
| Cable Outer Diameter | 3.0 mm |
| Core Diameter | 50.0 |
| Minimum Bend Radius | 20mm (Dynamic); 10mm (Static) |
Reference
| Product Warranty Period | Lifetime limited warranty |
|---|
