Tripp Lite

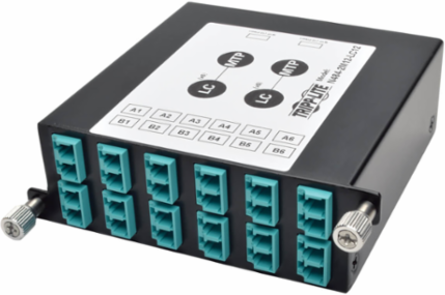

Tripp Lite N484-2M12-LC12 40Gb to 10Gb Breakout Cassette, (x2) 12-Fiber OM4 MTP/MPO ( Male with Pins ) to ( x12 ) LC Duplex

40Gb to 10Gb Breakout Cassette, (x2) 12-Fiber OM4 MTP/MPO ( Male with Pins ) to ( x12 ) LC Duplex
40Gb to 10Gb Breakout Cassette, (x2) 12-Fiber OM4 MTP/MPO ( Male with Pins ) to ( x12 ) LC Duplex
40Gb to 10Gb Breakout Cassette, (x2) 12-Fiber OM4 MTP/MPO ( Male with Pins ) to ( x12 ) LC Duplex
40Gb to 10Gb Breakout Cassette, (x2) 12-Fiber OM4 MTP/MPO ( Male with Pins ) to ( x12 ) LC Duplex
40Gb to 10Gb Breakout Cassette, (x2) 12-Fiber OM4 MTP/MPO ( Male with Pins ) to ( x12 ) LC Duplex
  • MPN: N484-2M12-LC12
  • UPC: 037332187185
  • PPN: TRP-N484-2M12-LC12

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$939.64/ EA

Description

40Gb to 10Gb Breakout Cassette, (x2) 12-Fiber OM4 MTP/MPO ( Male with Pins ) to ( x12 ) LC Duplex

Features

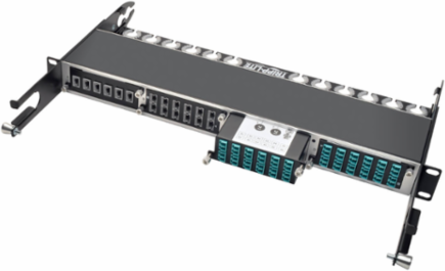

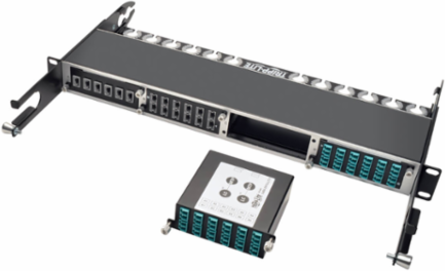

  • High Density Fiber Cassette for use with Tripp Lite's N484-00U and N484-01U chassis'
  • 40Gb to 10Gb Breakout Cassette, with (x12) LC connections to (x2) 12-Fiber MTP/MPO connections ( Male w/Pins )
  • 12-Fiber MTP ports are Polarity B, Optimized for Parallel Optics, Base-8 Connectivity
  • Guaranteed compatibility when used with recommended Tripp Lite cabling
  • Cassette designed specifically for use with Tripp Lite cables, such as the N820-, N821-, N844- and N845-Series cables
  • Internal OM4 wiring
  • Complies with IEEE 802.3ae (10GbE) and ANSI T11.2 (Fibre Channel) requirements
  • Max insertion loss of 0.35dB falls well under the IEEE 802.3ae maximum channel loss spec of <25dB
  • This product is covered by a Lifetime Limited Warranty ( coverage details )

Specifications

Features & Specifications

Technology
Multimode; MTP/MPO

Certifications

Approvals
RoHS, REACH

Connections

Ports
12
Side B - Connector 1
LC DUPLEX (FEMALE)
Side A - Connector 112-STRAND MTP (MALE)

Physical

Color
Black
Shipping Weight (lbs.)
0.90
Unit Weight (lbs.)
0.7
Shipping Dimensions (hwd / in.)1.80 x 5.80 x 7.50
Unit Dimensions (hwd / in.)1.4 x 4.4 x 3.8

Environmental

Operating Temperature Range
-4 to 122 F (-20 to 50 C)

Overview

UPC Code
037332187185

Warranty

Product Warranty Period (Worldwide)
Lifetime limited warranty
