Tripp Lite

Tripp Lite N484-12LC 10GbE Pass-Through Cassette - (x12) LC Duplex

10GbE Pass-Through Cassette - (x12) LC Duplex
10GbE Pass-Through Cassette - (x12) LC Duplex
10GbE Pass-Through Cassette - (x12) LC Duplex
10GbE Pass-Through Cassette - (x12) LC Duplex
10GbE Pass-Through Cassette - (x12) LC Duplex
10GbE Pass-Through Cassette - (x12) LC Duplex
  • MPN: N484-12LC
  • UPC: 037332187260
  • PPN: TRP-N484-12LC

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$387.38/ EA

Description

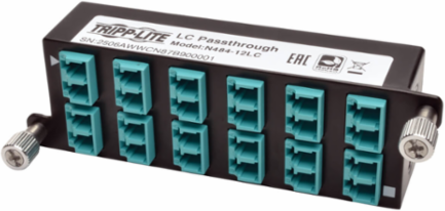

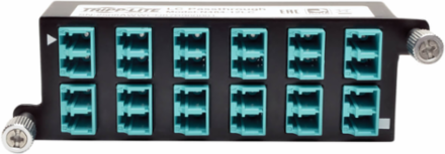

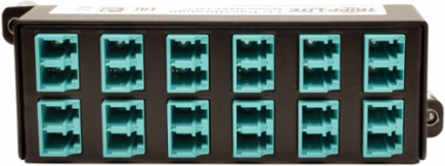

10GbE Pass-Through Cassette - (x12) LC Duplex

Features

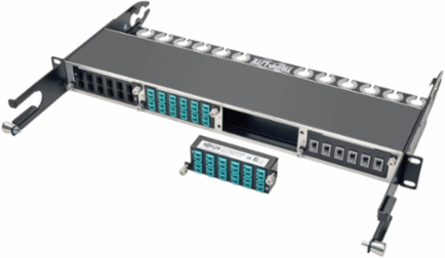

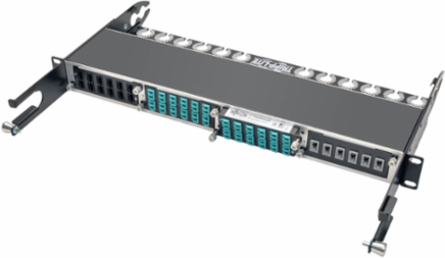

  • High Density Fiber Cassette for use with the N484-00U and N484-01U chassis'
  • 10GbE Pass-Through Cassette, with (x12) LC Duplex connections
  • Guaranteed compatibility when used with recommended Tripp Lite cabling
  • Compatible with both singlemode and multimode fiber cables.
  • Designed specifically for use with Tripp Lite cables, such as the N820- and N821-Series cables
  • Complies with IEEE 802.3ae (10GbE) and ANSI T11.2 (Fibre Channel) requirements
  • This product is covered by a Lifetime Limited Warranty ( coverage details )

Specifications

Features & Specifications

Technology
Multimode

Certifications

Approvals
RoHS, REACH

Connections

Ports
12
Side B - Connector 1
LC DUPLEX (FEMALE)
Side A - Connector 1LC DUPLEX (FEMALE)

Physical

Color
Black
Shipping Weight (lbs.)
0.55
Unit Weight (lbs.)
0.3
Shipping Dimensions (hwd / in.)2.36 x 5.12 x 1.46
Unit Dimensions (hwd / in.)1.4 x 4.4 x 0.9

Environmental

Operating Temperature Range
-4 to 122 F (-20 to 50 C)

Overview

UPC Code
037332187260

Warranty

Product Warranty Period (Worldwide)
Lifetime limited warranty
