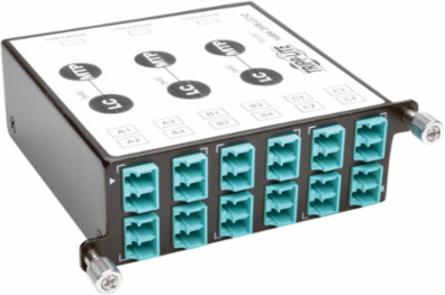

Tripp Lite N484-3M8-LC12 40/100Gb Breakout Cassette, 40Gb to 4 x 10Gb, 100Gb to 4 x 25Gb, (x3) 8-Fiber MTP/MPO to (x12) LC Duplex, Type-B Polarity

40/100Gb Breakout Cassette, 40Gb to 4 x 10Gb, 100Gb to 4 x 25Gb, (x3) 8-Fiber MTP/MPO to (x12) LC Duplex, Type-B Polarity
40/100Gb Breakout Cassette, 40Gb to 4 x 10Gb, 100Gb to 4 x 25Gb, (x3) 8-Fiber MTP/MPO to (x12) LC Duplex, Type-B Polarity
40/100Gb Breakout Cassette, 40Gb to 4 x 10Gb, 100Gb to 4 x 25Gb, (x3) 8-Fiber MTP/MPO to (x12) LC Duplex, Type-B Polarity
40/100Gb Breakout Cassette, 40Gb to 4 x 10Gb, 100Gb to 4 x 25Gb, (x3) 8-Fiber MTP/MPO to (x12) LC Duplex, Type-B Polarity
40/100Gb Breakout Cassette, 40Gb to 4 x 10Gb, 100Gb to 4 x 25Gb, (x3) 8-Fiber MTP/MPO to (x12) LC Duplex, Type-B Polarity
  • MPN: N484-3M8-LC12
  • UPC: 037332191366
  • PPN: TRP-N484-3M8-LC12

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1045.51/ EA

Description

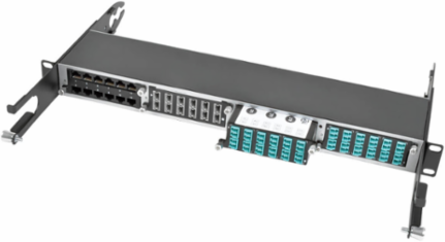

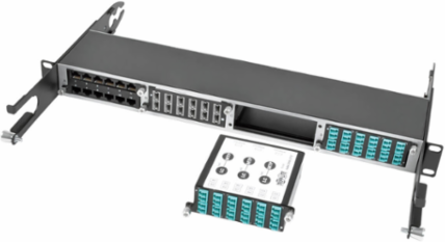

Installs in select Tripp Lite fiber chassis to connect 12 duplex LC fiber cables with three 8-fiber MTP/MPO connections in high-density network applications.

Features

  • For use with Tripp Lite N484-01U or N484-00U chassis
  • Simple installation with no tools required
  • Factory-terminated connectors
  • Supports 40 GbE internally using OM4 fiber optic cable
  • Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 to SFP+ 10GBASE-SR and QSFP28 100GBASE-SR4 to SFP28 25GBASE-SR connections
  • Designed for use with recommended Tripp Lite cabling
  • This product is covered by a Lifetime Limited Warranty ( coverage details )
  • Elegant, Simple Solution for 40Gb to 10Gb, or 100Gb to 25Gb, LC Cable Connections
  • Designed Specifically for Use with Tripp Lite Cabling
  • Simple Fiber Installations Save Time and Money
  • Easy to Modify, Upgrade or Expand Fiber Infrastructure By Adding or Swapping Cassettes
  • Premium Construction for Optimal Performance

Specifications

Features & Specifications

Technology
Multimode; MTP/MPO

Connections

Ports
12

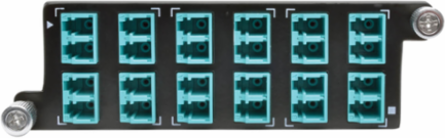

Side B - Connector 1
LC DUPLEX (FEMALE)

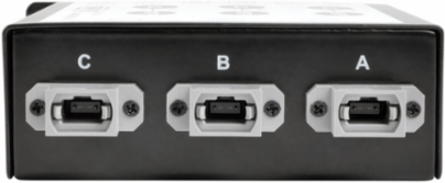

Side A - Connector 18-STRAND MTP (MALE)

Physical

Shipping Dimensions (hwd / in.)
1.60 x 7.70 x 5.90
Shipping Weight (lbs.)0.97

Overview

UPC Code
037332191366

Warranty

Product Warranty Period (Worldwide)
Lifetime limited warranty
