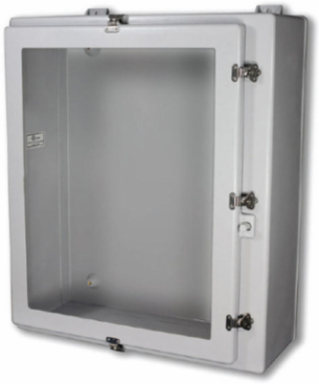

Wiegmann HW-N4X242008CHW NEMA 4X Continuous Hinge Twist Latch 24X20X8 With Window Fiberglass-Opaque

MPN: HW-N4X242008CHW
UPC: 786725878345
PPN: HBL-HW-N4X242008CHW
UNSPSC: 39121324

$2968.57

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

NEMA 4X Continuous Hinge Twist Latch 24X20X8 With Window Fiberglass-Opaque

Features

Constructed of molded fiberglass
Windowed cover with continuous hinge and twist-lock latches
Poured seamless gasket provides a water-tight and dust-tight seal
Mounting provisions are provided

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States
Cover Type	Hinged Cover with Window
Depth	8 in
Mounting	Wall Mount
Standard	cULus
Width	20 in
Mounting Type	Wall Mount
Class Code	P07
Freight Class Code	06316009
Image Actual Or Representative	R
Returnable Indicator	No
Sub Class Code	P07P095
UL Listed	Yes
Series	Control Series
BOX SIZE	8.000x24.000x20.000 (in)
Carton - Total Units	1 EA
Pallet Length	48.000 in
Pallet Width	40.000 in

Color	Gray
Cubic Capacity	3840 cu.in
Height	24 in
NEMA Rating	4X
Type	Enclosure
Weight	52.2 lb.
Nema Rating	4X
Description - Invoice	N4X CH TWST LAT W/WDW 24X20X8 FGL -OPQ
Harmonization Code	3926909989
Lead Time	2 wk
Stock Indicator	S - Shelf Stock
Buy America(n) Qualified	Contact Manufacturer
Material	Fiberglass
Base Unit of Measure	EA
Carton - SCC-14 Next Lower Level Sub Pack	00786725878345
Pallet Height	35.000 in
Pallet Weight	120.000 lb.
NAICS Code	3359326105
