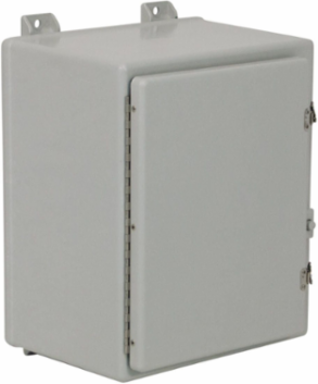

Wiegmann HW-N4X603616CH NEMA 4X Continuous Hinge Twist Latch 60X36X16 Fiberglass-Opaque
Wiegmann HW-N4X603616CH NEMA 4X Continuous Hinge Twist Latch 60X36X16 Fiberglass-Opaque
- MPN: HW-N4X603616CH
- UPC: 786725857791
- PPN: HBL-HW-N4X603616CH
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
NEMA 4X Continuous Hinge Twist Latch 60X36X16 Fiberglass-Opaque
Features
- Constructed of molded fiberglass
- Continuous hinge with twist-lock latches
- Poured seamless gasket provides a water-tight and dust-tight seal
- Mounting provisions are provided
Specifications
Specifications
- Country of Origin
- United States
- Actual Height
- 63.5 in
- Color
- Gray
- Cubic Capacity
- 42624 cu.in
- Height
- 64 in
- NEMA Rating
- 4X
- Type
- Enclosure
- Weight
- 155 lb.
- Nema Rating
- 4X
- Description - Invoice
- N4X CONT HNG TWST LAT 60X36X16 FGL -OPQ
- Harmonization Code
- 3926909989
- Lead Time
- 2 wk
- Stock Indicator
- S - Shelf Stock
- UL Listed
- Yes
- Series
- Control Series
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Carton - Total Units
- 1 EA
Actual Depth18.12 in
Actual Width36.5 in
Cover TypeHinged Cover
Depth18 in
MountingWall Mount
StandardcULus
Width37 in
Mounting TypeWall Mount
Class CodeP07
Freight Class Code06316009
Image Actual Or RepresentativeR
Returnable IndicatorNo
Sub Class CodeP07P095
MaterialFiberglass
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00786725857791
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- No
Certified ListedcULus
