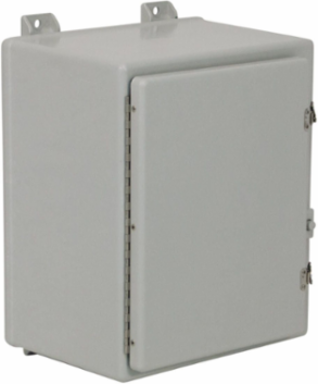

Wiegmann HW-N4X302012CH NEMA 4X Continuous Hinge Twist Latch 30X20X12 Fiberglass-Opaque

MPN: HW-N4X302012CH
UPC: 786725857692
PPN: HBL-HW-N4X302012CH
UNSPSC: 39121324

$3281.62

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

NEMA 4X Continuous Hinge Twist Latch 30X20X12 Fiberglass-Opaque

Features

Constructed of molded fiberglass
Continuous hinge with twist-lock latches
Poured seamless gasket provides a water-tight and dust-tight seal
Mounting provisions are provided

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States
Actual Height	32.86 in
Color	Gray
Cubic Capacity	7200 cu.in
Height	30 in
NEMA Rating	4X
Type	Enclosure
Weight	48 lb.
Nema Rating	4X
Description - Invoice	N4X CONT HNG TWST LATCH 30X20X12 FGL-OPQ
Harmonization Code	3926909989
Lead Time	2 wk
Stock Indicator	S - Shelf Stock
UL Listed	Yes
Series	Control Series
BOX SIZE	0.000x0.000x0.000 (in)
Carton - Total Units	1 EA
NAICS Code	3359326105

Actual Depth	13.89 in
Actual Width	20.99 in
Cover Type	Hinged Cover
Depth	12 in
Mounting	Wall Mount
Standard	cULus
Width	20 in
Mounting Type	Wall Mount
Class Code	P07
Freight Class Code	06316009
Image Actual Or Representative	R
Returnable Indicator	No
Sub Class Code	P07P095
Material	Fiberglass
Base Unit of Measure	EA
Carton - SCC-14 Next Lower Level Sub Pack	00786725857692
Pallet Weight	0.000 lb.
