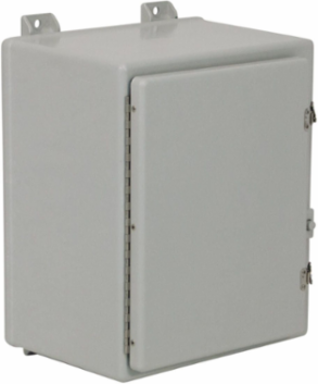

Wiegmann HW-N4X363012CH NEMA 4X Continuous Hinge Twist Latch 36X30X12 Fiberglass-Opaque
- MPN: HW-N4X363012CH
- UPC: 786725857753
- PPN: HBL-HW-N4X363012CH
- UNSPSC: 39121324
CAD
$4213.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
NEMA 4X Continuous Hinge Twist Latch 36X30X12 Fiberglass-Opaque
Features
- Constructed of molded fiberglass
- Continuous hinge with twist-lock latches
- Poured seamless gasket provides a water-tight and dust-tight seal
- Mounting provisions are provided
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Actual Height
- 39.31 in
- Color
- Gray
- Cubic Capacity
- 12960 cu.in
- Height
- 36 in
- NEMA Rating
- 4X
- Type
- Enclosure
- Weight
- 81 lb.
- Nema Rating
- 4X
- Description - Invoice
- N4X CONT HNG TWST LATCH 36X30X12 FGL-OPQ
- Harmonization Code
- 3926909989
- Lead Time
- 2 wk
- Stock Indicator
- S - Shelf Stock
- UL Listed
- Yes
- Series
- Control Series
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Carton - Total Units
- 1 EA
Actual Depth14.05 in
Actual Width32.5 in
Cover TypeHinged Cover
Depth12 in
MountingWall Mount
StandardcULus
Width30 in
Mounting TypeWall Mount
Class CodeP07
Freight Class Code06316009
Image Actual Or RepresentativeR
Returnable IndicatorNo
Sub Class CodeP07P095
MaterialFiberglass
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00786725857753
NAICS Code3359326105
Certifications
- Buy American Compliant
- Contact Manufacturer
Certified ListedcULus
