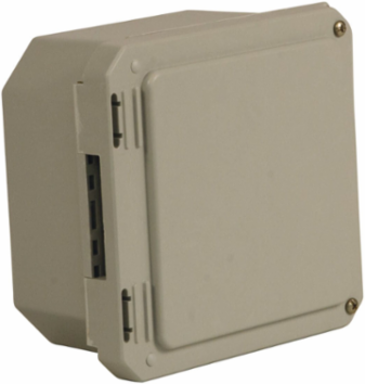

Wiegmann HW-181610CHSC NEMA 4X Continuous Hinge Two Screw Cover 18X16X10 Fiberglass-Opaque

MPN: HW-181610CHSC
UPC: 786725856084
PPN: HBL-HW-181610CHSC
UNSPSC: 39121324

$707.88

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

NEMA 4X Continuous Hinge Two Screw Cover 18X16X10 Fiberglass-Opaque

Features

Constructed of molded fiberglass
Continuous hinge with two-screw cover
Poured seamless gasket provides a water-tight and dust-tight seal
Optional mounting foot kit is available

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States
Cover Type	Hinged Cover
Depth	10 in
Mounting	Wall Mount
Standard	cULus
Width	16 in
Mounting Type	Wall Mount
Class Code	P07
Freight Class Code	06316009
Image Actual Or Representative	R
Returnable Indicator	No
Sub Class Code	P07P095
UL Listed	Yes
Series	Premier Series
BOX SIZE	0.000x0.000x0.000 (in)
Carton - Total Units	1 EA
NAICS Code	3359326105

Color	Gray
Cubic Capacity	2880 cu.in
Height	18 in
NEMA Rating	4X
Type	Enclosure
Weight	16 lb.
Nema Rating	4X
Description - Invoice	N4X CONT HNG 2 SCR CVR 18X16X10 FGL-OPQ
Harmonization Code	3926909989
Lead Time	2 wk
Stock Indicator	S - Shelf Stock
Buy America(n) Qualified	Contact Manufacturer
Material	Fiberglass
Base Unit of Measure	EA
Carton - SCC-14 Next Lower Level Sub Pack	00786725856084
Pallet Weight	0.000 lb.
