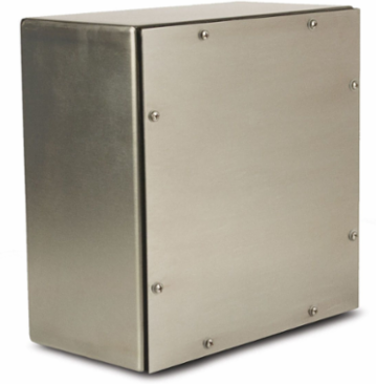

Wiegmann WA181806GSCSS NEMA 4X Gasketed Screw Cover 18X18X6 304 Stainless Steel

MPN: WA181806GSCSS
UPC: 786725880669
PPN: HBL-WA181806GSCSS
UNSPSC: 39121324

$934.25

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

NEMA 4X Gasketed Screw Cover 18X18X6 304 Stainless Steel

Features

Bodies and covers are fabricated from 304 stainless steel
Seams are continuously welded and ground smooth
Cover contains a closed cell oil resistent neoprene gasket
Ground stud is located on the inside of the cover
No mounting provisions are provided

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico
Actual Width	18.125 in
Application	Designed for use as a wiring box, junction box, pull box, or terminal box with many indoor and outdoor applications where dust or moisture is a problem.
Cubic Capacity	1944 cu.in
Finish	Smooth Grained
Mounting	Wall
Standard	cULus
Engineering Drawing 3 Display Text	MOD Center Drawings Instructions
Mounting Type	Wall
Class Code	P03
Freight Class Code	06316009
Image Actual Or Representative	R
Returnable Indicator	Yes
Sub Class Code	P03P054
Construction	Continuously Welded Seams
Base Unit of Measure	EA
Carton - SCC-14 Next Lower Level Sub Pack	00786725880669
Pallet Height	45.500 in
Pallet Weight	560.200 lb.
NAICS Code	3359326101

Actual Height	18.125 in
Number of Doors (Fixed)	1
Cover Type	Screw Cover
Depth	6 in
Height	18 in
NEMA Rating	4, 4X, 12, 13
Width	18 in
Finish Type	Smooth Grained
Nema Rating	4, 4X, 12, 13
Description - Invoice	N4X GASKETED SCREW COVER 18X18X6 304SS
Harmonization Code	7326908688
Lead Time	2 wk
Stock Indicator	S - Shelf Stock
Buy America(n) Qualified	Contact Manufacturer
Material	304 Stainless Steel
BOX SIZE	8.200x19.500x19.100 (in)
Carton - Total Units	1 EA
Pallet Length	48.000 in
Pallet Width	40.000 in
