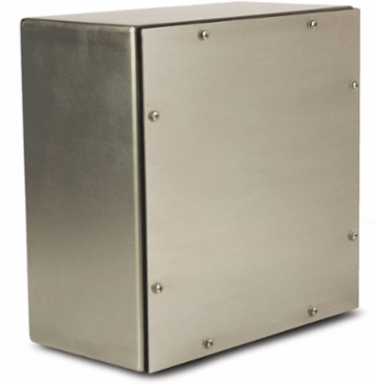

Wiegmann WA081004GSCSS NEMA 4X Gasketed Screw Cover 8X10X4 304 Stainless Steel
- MPN: WA081004GSCSS
- UPC: 786725880560
- PPN: HBL-WA081004GSCSS
- UNSPSC: 39121324
CAD
$555.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
NEMA 4X Gasketed Screw Cover 8X10X4 304 Stainless Steel
Features
- Bodies and covers are fabricated from 304 stainless steel
- Seams are continuously welded and ground smooth
- Cover contains a closed cell oil resistent neoprene gasket
- Ground stud is located on the inside of the cover
- No mounting provisions are provided
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Actual Width
- 10.125 in
- Application
- Designed for use as a wiring box, junction box, pull box, or terminal box with many indoor and outdoor applications where dust or moisture is a problem.
- Cubic Capacity
- 320 cu.in
- Finish
- Smooth Grained
- Mounting
- Wall
- Standard
- cULus
- Engineering Drawing 3 Display Text
- MOD Center Drawings Instructions
- Mounting Type
- Wall
- Class Code
- P03
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- Returnable Indicator
- Yes
- Sub Class Code
- P03P054
- Material
- 304 Stainless Steel
- BOX SIZE
- 4.900x11.600x9.150 (in)
- Carton - Total Units
- 1 EA
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Actual Height8.125 in
Number of Doors (Fixed)1
Cover TypeScrew Cover
Depth4 in
Height8 in
NEMA Rating4, 4X, 12, 13
Width10 in
Finish TypeSmooth Grained
Nema Rating4, 4X, 12, 13
Description - InvoiceN4X GASKETED SCREW COVER 8X10X4 304SS
Harmonization Code7326908688
Lead Time2 wk
Stock IndicatorS - Shelf Stock
ConstructionContinuously Welded Seams
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00786725880560
Pallet Height48.600 in
Pallet Weight1109.160 lb.
NAICS Code3359326101
Certifications
- Buy American Compliant
- Contact Manufacturer
Certified ListedcULus
