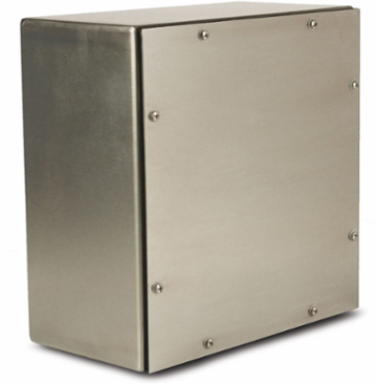

Wiegmann WA060604GSCSSA NEMA 4X Gasketed Screw Cover 6X6X4 316 Stainless Steel
- MPN: WA060604GSCSSA
- UPC: 786725890880
- PPN: HBL-WA060604GSCSSA
- UNSPSC: 39121324
CAD
$757.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
NEMA 4X Gasketed Screw Cover 6X6X4 316 Stainless Steel
Features
- Bodies and covers are fabricated from 316 stainless steel
- Seams are continuously welded and ground smooth
- Cover contains a closed cell oil resistent neoprene gasket
- Ground stud is located on the inside of the cover
- No mounting provisions are provided
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Actual Width
- 6.125 in
- Application
- Designed for use as a wiring box, junction box, pull box, or terminal box with many indoor and outdoor applications where dust or moisture is a problem.
- Cubic Capacity
- 144 cu.in
- Finish
- Smooth Grained
- Mounting
- Wall
- Standard
- cULus
- Finish Type
- Smooth Grained
- Nema Rating
- 4, 4X, 12, 13
- Description - Invoice
- N4X GASKETED SCREW COVER 6X6X4 304SS
- Harmonization Code
- 7326908688
- Lead Time
- 2 wk
- Stock Indicator
- S - Shelf Stock
- Construction
- Continuously Welded Seams
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725890880
- Pallet Height
- 49.500 in
- Pallet Weight
- 1125.000 lb.
- NAICS Code
- 3359326101
Actual Height6.125 in
Number of Doors (Fixed)1
Cover TypeScrew Cover
Depth4 in
Height6 in
NEMA Rating4, 4X, 12, 13
Width6 in
Mounting TypeWall
Class CodeP03
Freight Class Code06316009
Image Actual Or RepresentativeR
Returnable IndicatorYes
Sub Class CodeP03P054
Material316 Stainless Steel
BOX SIZE5.000x7.000x7.000 (in)
Carton - Total Units1 EA
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- Buy American Compliant
- Contact Manufacturer
Certified ListedcULus
