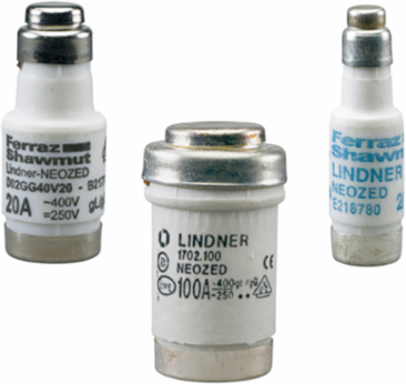

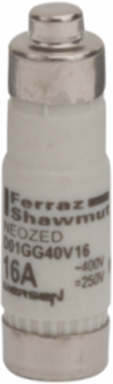

Mersen R223023 Neozed D0 Fuse-Link 400VAC 16A Grey, D01 Size, Gg Characteristic
- MPN: R223023
- PPN: FER-R223023
CAD
$22.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The D0 fuse-system is installed in low voltage distribution units, where fuse-links are accessible to non trained persons and can also be replaced by them. The system is the most modern of the screw systems and designed for 400VAC/250VDC networks. The D0 fuse range comprises the standardized fuse sizes D01, D02 and D03.
Specifications
Key Specifications
- Rated voltage AC IEC
- 400 V
- Ampere Rating
- 16 A
- ROHS Compliant
- Yes
- Speed/Characteristic
- gG
- Mounting
- Clip
- Indication System
- Yes
- Body/Insulating Material
- Ceramic
- Length
- 1.42 in
Rated voltage DC IEC250 V
Identification Color CodeGris
AC or DCAC/DC
Fuse SizeD01
AC Max I.R./Breaking Capacity: I150 kA
Indication System TypeColored indicator flag Visual Indicator
Power Dissipation at Rated Current Value2.2 W
Weight0.015 lb
