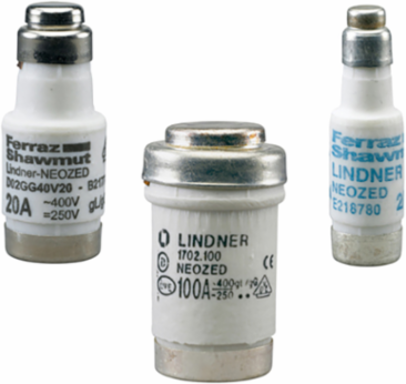

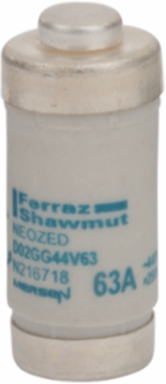

Mersen N216718 Neozed D0 Fuse-Link gG, 440VAC, 63A, Copper, Clip Mount, D02 Size
- MPN: N216718
- PPN: FER-N216718
CAD
$55.29
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The D0 fuse-system is installed in low voltage distribution units, where fuse-links are accessible to non trained persons and can also be replaced by them. The system is the most modern of the screw systems and designed for 400VAC/250VDC networks. The D0 fuse range comprises the standardized fuse sizes D01, D02 and D03.
Specifications
Key Specifications
| Rated voltage AC IEC | 440 V |
|---|---|
| Ampere Rating | 63 A |
| ROHS Compliant | Yes |
| Speed/Characteristic | gG |
| Mounting | Clip |
| Indication System | Yes |
| Body/Insulating Material | Ceramic |
| Length | 1.42 in |
| Rated voltage DC IEC | 250 V |
|---|---|
| Identification Color Code | Cuivre |
| AC or DC | AC/DC |
| Fuse Size | D02 |
| AC Max I.R./Breaking Capacity: I1 | 50 kA |
| Indication System Type | Colored indicator flag Visual Indicator |
| Power Dissipation at Rated Current Value | 5.1 W |
| Weight | 0.028 lb |
