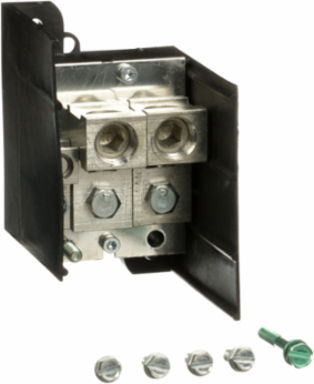

Square D SN20A Solid neutral assembly, safety switch, 1 x aluminium/copper AWG 1/0, series F5/F6 200A
- MPN: SN20A
- UPC: 785901331605
- PPN: SCH-SN20A
CAD
$98.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. They also come with many field installable or factory installed accessories. This solid neutral assembly is insulated and groundable. It has one terminal in and one terminal out, with an additional grounding terminal. Each main terminal accepts 6 AWG to 250kcmil, and the ground terminal accepts 14 AWG to 10 AWG. This accessory complies with UL and CSA standards.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Tightening Torque
- 275-275 lbf.in (6 AWG...250 kcmil)50-50 lbf.in (14 AWG...10 AWG), 50-50 lbf.in (12 AWG...10 AWG)
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- N
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Product Category
- 4
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1906
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Awg Gauge
- 1/0 AWG 1 aluminium/copper250 kcmil 2 aluminium/copper
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- safety switch solid neutral assembly
- Sustainable Packaging
- Yes
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908160
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
TraceabilityNo
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Product Destinationsafety switch
ReturnabilityYes
Certificate AgencyUL Listed
Package Weight(Lbs)440.0 g
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- safety switch solid neutral assembly
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
