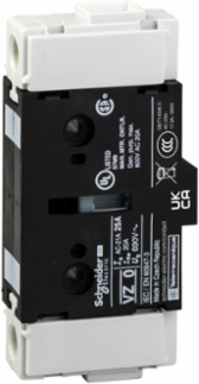

Schneider Electric VZ0 Additional pole,TeSys Control,25A,for V0

Additional pole,TeSys Control,25A,for V0
  • MPN: VZ0
  • PPN: SCH-VZ0

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$25.97/ EA

Description

TeSys Vario add-on module, main pole 25A 690V, for Vario switch-disconnectors. To be used with V0 switch bodies. A maximum of 3 additional VZ0 modules can be attached to the switch body. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Specifications

Environment

Product Certifications
GL || UL || CSA || UKCA
Standards
IEC 60947-3
Protective Treatment
TC
Fire Resistance
960 °C IEC 60695-2-1
Ambient Air Temperature For Operation-20-50 °C
Ip Degree Of ProtectionIP20 IEC 60529
Mechanical Robustnessvibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP2211001
Pvc Free
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
China Rohs Regulation
Product out of China RoHS scope. Substance declaration for your information
Eu Rohs Directive
Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Halogen Content PerformanceHalogen free product

Complementary

[Ue] Rated Operational Voltage
690 V AC 50/60 Hz
[Ith] Conventional Free Air Thermal Current
25 A
Net Weight
0.05 kg
Mounting Location
left || right
Electrical Durability
100000 cycles AC-21 || 30000 cycles DC-1...5
Width
16 mm
Depth
35 mm
Height74 mm
[Ithe] Conventional Enclosed Thermal Current20 A
[Uimp] Rated Impulse Withstand Voltage8 kV
Connections - Terminalspower circuit screw clamp terminals 6-6 mm² flexible - with cable end || power circuit screw clamp terminals 10-10 mm² solid
Mechanical Durability100000 cycles
Tightening Torquepower circuit 2.1-2.1 N.m screw clamp terminals

Specifications

Network Frequency
50/60 Hz
Range Compatibility
TeSys TeSys VARIO switch disconnector
Performance Level
high performance
Contacts Type And Composition
1 NO
Poles Description
1P
Device Short Name
VZ
Network TypeAC || DC
Product Or Component Typeadditional pole
RangeTeSys
Suitability For Isolationyes
Product CompatibilityV0
