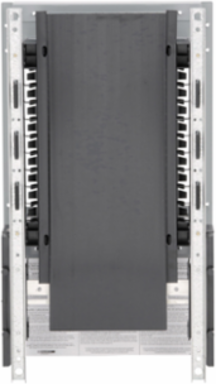

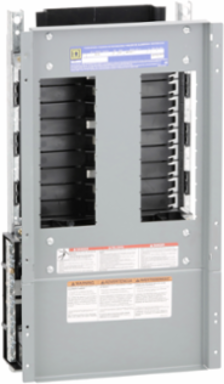

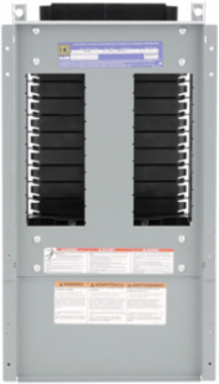

125A Panelboard Interior, Aluminum Bus, 18 Spaces, 4 Wire, 600Y/347V AC
Square D

Square D NF418L1 125A Panelboard Interior, Aluminum Bus, 18 Spaces, 4 Wire, 600Y/347V AC

  • MPN: NF418L1
  • UPC: 785901871286
  • PPN: SCH-NF418L1

CAD

$803.74

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

125A Panelboard Interior, Aluminum Bus, 18 Spaces, 4 Wire, 600Y/347V AC

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Mexico

Physical Attributes

Enclosure Nominal Height
26 in, 38 in
Enclosure Nominal Width20 in

Complementary Attributes

Line Rated Current
125 A

Important Information Attributes

Persona Type Ids
EU, LC, OM
Tightening Torque
4.52-5.65 N.m 13.30-67.43 mm² (6 AWG...2/0 AWG), 11.3-11.3 N.m 13.30-67.43 mm² (6 AWG...2/0 AWG)31.07-31.07 N.m 13.30-177.3 mm² (6 AWG...350 kcmil), 31.07-31.07 N.m 13.30-126.7 mm² (6 AWG...250 kcmil)31.07-31.07 N.m 107.2-152 mm² (4 AWG...300 kcmil)
Carbon Footprint Of The Distribution Phase [A4]
1.8678658229, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
0.5152033258, 0.5 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
33 kg CO2 eq., 32.748
Local Publishable Date
2026-03-26
Stocking Flag
N
Use Carbon Footprint
32.748
Weee Product Category
5
Eoli Availability Display
No need of specific recycling operations
Reach Full Compliance Status Id
NOT_CONTAINING_SVHC
Rohs Eur In Scope
Yes
Rohs Eur Conformity Date
2532
China Rohs In Scope
No
With Recycled Cardboard
Yes
Product Contributes To Saved And Avoided Emissions
No
Tier
1
Function Option
Standard
Market Segmentation
Commercial
Circuit Breaker Type
EDB/EDG/EDJ
Load Center Type
main lugs
Number Of Spaces
18
Product Availability
Stock - Normally stocked in distribution facility
Software Version
v5.9.4
Total Lifecycle Carbon Footprint
93 kg CO2 eq.
Pep Code
ENVPEP2303002EN
Pep Verification Date
2023-07-15
Psr Version
PSR-0005-ed2-2016 03 29
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime In Y
20
Energy Model - Manufacturing [A1-a3]
Energy model used: Electricity Mix; Production mix; Low voltage; MX
Energy Model - Use [B6]
Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; CA / Electricity Mix; Production mix; Low voltage; US
Recyclability Potential In %
94
Width Nominal
10.44 in
Connections - Terminals
lug line 6 AWG...2/0 AWG aluminium/copperlug neutral 6 AWG...2/0 AWG aluminium
Nbr. Of Units In Pkg.
1
Take-back
No
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]
32.703
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
653.42
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
23.287
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
653.42
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
144.21
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
144.21
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer
Certificate AgencyCSA C22.2, UL 67
Carbon Footprint Of The End-of-life Phase [C1 To C4]16 kg CO2 eq., 15.7406007341
Carbon Footprint Of The Manufacturing Phase [A1 To A3]42 kg CO2 eq., 42.1746592889
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdCOMMERCIAL
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Materialaluminium
Phase3 phase 4 wires
ReturnabilityYes
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1422.40 mm x 508.00 mm x 146.05 mm and NEMA 1& 10Followed standard: UL 67,UL 50E and CSA22.2
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh73.4088
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; CA / Electricity Mix; Production mix; Low voltage; US
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; CA / Electricity Mix; Production mix; Low voltage; US
Height Nominal21 in
[Ue] Rated Operational Voltage600Y/347 V AC
[Iu] Rated Interrupted Current65 kA
Package Weight(Lbs)6.455 kg
Warranty (In Months)18
Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]32.748
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]258.19
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]4.2466
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]797.64
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]653.42
Customs Code8537109150

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc
Yes
Toxic Heavy Metal Free
Yes
Carbon Footprint
93.0463291717
Eu Rohs Directive
Compliant
Packaging Without Single Use Plastic
No
Reach Regulation
Free of Substances of Very High Concern above the threshold
Pep Verification Date
2023-07-15
Psr Version
PSR-0005-ed2-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2303002EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2303002EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review

General Attributes

Phase
3 phase 4 wires

ETIM

ETIM 8
EC000264
ETIM 9EC000264

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
