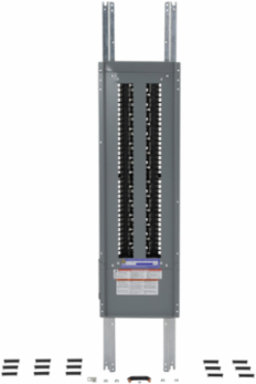

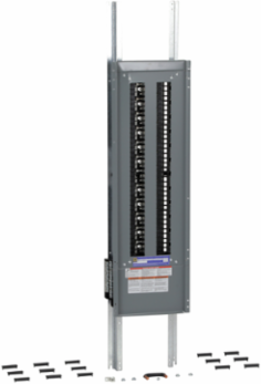

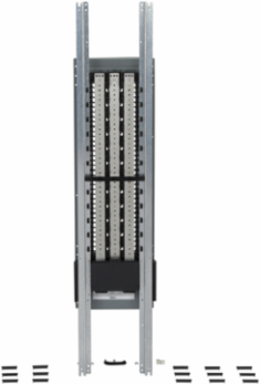

Square D NQ472L4 NQ Panelboard Interior, 400A, 72 Circuits, 4-Wire, 240V AC, Aluminum
- MPN: NQ472L4
- UPC: 785901502531
- PPN: SCH-NQ472L4
CAD
$2168.58
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
NQ Panelboard interiors may be used in a wide variety of applications including: commercial buildings; industrial buildings; data centers; stadiums; and offices. NQ Panelboards are versatile panelboards that feature a wide selection of bolt-on and plug-on branch circuit breakers, integral main circuit breakers, branch mounted SPDs, and a wide variety of ready to install accessory kits. The interiors are field convertible to support top or bottom feed. This main lugs interior is rated 400A for 240VAC and 48VDC, has a plated aluminum bus, and 72 pole spaces. NQ Panelboards are convertible from main lugs to main circuit breaker. NQ Panelboards offer 200% rated neutrals for nonlinear loads. Factory installed options include phenolic nameplates, power monitoring of mains and branch circuits, split bus interiors, and neutral assemblies which support up to 36 100A branch circuit breakers. NQ Panelboards are available with IP2X per IEC 60529 barriers for UL service entrance applications. Interior has an interrupt current rating of up to 65kA (depending upon the circuit breakers installed). This NQ panelboard interior is UL listed for applications in the USA and Canada. Interior accepts QOB, QOBVH and QHB bolt-on and QO, QOVH and QH plug-on branch circuit breakers. Standard mechanical main lug connections will accept copper or aluminum wire. NQ Panelboard interiors are available with plated aluminum or copper bus. 100A branch circuit breakers may be installed on both sides of NQ Panelboard interiors.
Features
- Featuring an extra-high density, 72-circuit layout, this panelboard interior maximizes distribution capacity within a standard enclosure footprint. It allows commercial electricians and plant engineers to consolidate multiple sub-panels into one central location, accommodating a massive array of single-, double-, or three-pole breakers to easily handle future tenant fit-outs, machinery additions, or automated lighting upgrades.
- Engineered with robust, high-conductivity copper buses rated for a full 400 Amps at 240V AC, this interior delivers reliable primary or secondary power distribution for high-demand electrical environments. The heavy-duty 400A busing mitigates heat buildup and voltage drop under continuous peak loads, making it ideal for large offices, retail spaces, and modern manufacturing facilities.
- Engineered for ultimate versatility, the chassis seamlessly accepts both standard Square DTM QOTM plug-on breakers and QOB bolt-on circuit breakers. This dual compatibility allows contractors to meet rigid project specifications such as utilizing high-vibration resistant bolt-on breakers for industrial machinery while dropping in cost-effective plug-on components for standard commercial lighting circuits greatly simplifying on-site inventory management.
- Shipped out of the box with a 400-amp, 3-phase, 4-wire main lug configuration, this interior easily converts into a main circuit breaker panelboard using simple, field-installable conversion kits. This agile design allows you to quickly adapt to shifting design-build requirements on the job site or seamlessly upgrade sub-panels to primary service entrance equipment without scrapping the original core hardware.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Costa Rica |
|---|
Physical Attributes
| Enclosure Nominal Height | 62 in |
|---|
| Enclosure Nominal Width | 20 in |
|---|
Complementary Attributes
| Line Rated Current | 400 A |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM |
|---|---|
| Circuit Breaker Type | QOB, QOB-VH, QHB |
| Certificate Agency | CSA, UL |
| [Iu] Rated Interrupted Current | 10 kA, 22 kA, 65 kA |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 33 kg CO2 eq., 32.785535349 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 90 kg CO2 eq., 90.4217735 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2532 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Commercial |
| Energy Efficiency Optimized | False |
| Material | aluminium |
| Phase | 3 phase 4 wires |
| Product Or Component Type | interiors |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 128 kg CO2 eq. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1270 mm x 508 mm x 146.05 mm,and NEMA 1& 10- followed standard: UL 67 UL 50E and CSA22.2 |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Electricity Mix; Production mix; Low voltage; MX |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; CA |
| Recyclability Potential In % | 93 |
| Width Nominal | 10.44 in |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538100000 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer |
|---|---|
| Tightening Torque | 42.37-42.37 N.m 53.48-152 mm² (1/0 AWG...300 kcmil)31.07-33.90 N.m 53.48-380 mm² (1/0 AWG...750 kcmil), 31.07-33.90 N.m 53.48-177.3 mm² (1/0 AWG...350 kcmil), 62.14-62.14 N.m 53.48-380 mm² (1/0 AWG...750 kcmil), 62.14-62.14 N.m 53.48-152 mm² (1/0 AWG...300 kcmil), 42.37-42.37 N.m 53.48-380 mm² (1/0 AWG...750 kcmil) |
| Connections - Terminals | lug line 1/0 AWG...750 kcmil aluminium, lug neutral 1/0 AWG...750 kcmil aluminium |
| Carbon Footprint Of The Distribution Phase [A4] | 4.0529776163, 4 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.5190721459, 0.5 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 0 kg CO2 eq., 0.0254774201 |
| Local Publishable Date | 2025-11-18 |
| Stocking Flag | N |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | COMMERCIAL |
| Product Kit Identifier | N |
| Load Center Type | main lugs |
| Number Of Spaces | 72 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Sustainable Packaging | No |
| Pep Code | ENVPEP2303004EN |
| Pep Verification Date | 2023-07-15 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; CA |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; CA |
| Height Nominal | 57 in |
| [Ue] Rated Operational Voltage | 240 V AC48 V DC |
| Package Weight(Lbs) | 14.06 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 127.8048360313 |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-07-15 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2303004EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2303004EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Phase | 3 phase 4 wires |
|---|
| Product Or Component Type | interiors |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
