Cooper Lighitng Solutions

Cooper Lighitng Solutions NFFLD-L-C100-T Night Falcon Large LED Floodlight, 252W, 4000K, 6x6 Trunnion Mount

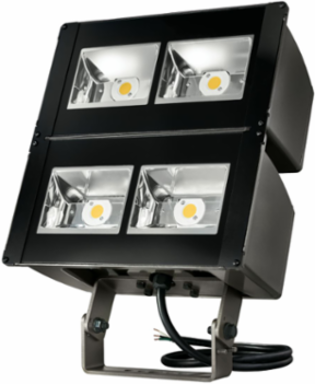

Night Falcon Large LED Floodlight, 252W, 4000K, 6x6 Trunnion Mount
  • MPN: NFFLD-L-C100-T
  • UPC: 080083800902
  • PPN: COL-NFFLD-L-C100-T
  • UNSPSC: 39111611

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1262.30/ EA

Description

The Night Falcon high wattage LED floodlight luminaire combines high-efficiency, precision engineered optics and energy efficiency in a cost-effective solution. Incorporating an innovative thermal management design into the fixture, that maximizes heat dissipation, results in longer fixture and LED life. The rugged, die-cast housing is IP66 and 3G vibration rated for exceptional durability and long term reliability. Select from integral slipfitter or galvanized steel trunnion mount for maximum field installation and adjustability. The Night Falcon high wattage floodlight is the ideal floodlight for many area outdoor lighting situations, including parking lots, construction and storage sites, rail yards, light industrial locations, marinas and service areas.

Features

  • 31.0 IN Length 18.25 IN Width 11.0 IN Height
  • Die-cast aluminum housing, driver compartment and driver door
  • Replaces up to 1000W equivalent metal halide
  • Two lumen packages, ranging from 25,942 lumens to 33,941 lumens
  • 6H x 6V NEMA wide distribution, 3H x 3V spot distribution
  • Standard 4000K CCT, minimum 70 CRI
  • 120-277V 50/60Hz, 347V 60Hz or 480V 60Hz
  • Slipfitter, trunnion and yoke mounting options
  • 3-PIN and 7-PIN NEMA twistlock photocontrol receptacle
  • 0-10V dimming standard

Specifications

Specifications

Length
31.0 Inches
Height
11.0 Inches
Country of Origin
MX
Color Temperature
4000K
Lamp Type
LED
Mounting
Trunnion
Voltage Rating
120-277V
ARRA Compliant
No
Case Quantity
1
Width18.25 Inches
Weight48.5 Pounds
Amperage Rating0.91 (at 277V)
Stock Guide Digital Catalog Dimensions6x6
Lumens33,941
Trunnion Slipfitter Or YokeTrunnion
Wattage252W
MarketPro US FlagYes
Pallet Quantity6
