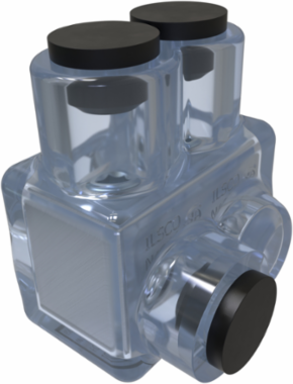

ILSCO ECTO-4 Nimbus Insulated Aluminum In-Line Splicer-Reducer Connector Offset, Conductor Range 4-14, 2 Ports, Tin Plated, UL, CSA
- MPN: ECTO-4
- UPC: 783669020397
- PPN: ILC-ECTO-4
CAD
$35.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Nimbus Insulated Aluminum In-Line Splicer-Reducer Connector Offset, Conductor Range 4-14, 2 Ports, Tin Plated, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Height
- 0.0001 in
- Weight
- 0 lbs
Length0.0001 in
Width0.0001 in
Voltage
- Voltage Rating
- 600 V
Dimensions
- Drive Size Main
- 1/8
- Height BX (IN)
- 0.0003
- Width BX (IN)
- 0.0004
Drive Type MainInternal Hex
Weight BX (LB)0.0001
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL / CULUS Specification
- UL 486A/B Listed
CSA StandardC22.2 No. 65-03
UL Control Number453G
UL File NumberE6207
Additional Class Attributes
- Connection
- Mechanical
- Number of Conductors
- 2
- Number of Ports / Wireways
- 2
- Replacement Part(s)
- PLUG-4
Contains DE-OX®Yes
Number of Poles1
Number of Usable Ports2
Material and Finish
- Conductor Material
- Copper, Aluminum
- Insulation
- Plastisol
- Wire Binding Hardware Finish
- Zinc Clear Trivalent Chromate
Connector FinishTin
MaterialAluminum
Wire Binding Hardware MaterialSteel
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line)
- 4 Str - 14 Str
- Conductor Range CU Stranded (Primary, run, main, line)
- 4 Str - 14 Str
Conductor Range CU Solid (Primary, run, main, line)10 Sol - 14 Sol
Conductor Range AL Solid (Primary, run, main, line)10 Sol - 14 Sol
Additional Technical Specifications
- Conductor Type
- Solid, Stranded
General
- Bag Quantity
- 0
- Dual Rated
- Yes
- UPC Code
- 78366902039
Carton Quantity DescriptionSTD PACK QTY 12
NEMA CodeS-588-4
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
- Wire Binding Torque
- 10 - 18 AWG = 20, 8 AWG = 25, 2 AWG = 40, 4 - 6 AWG = 35
Wire Binding Screw Size1/4
Color
- Cap Color Main
- Black
- Color
- Clear
Cap Color TapBlack
Environment and Temperature
- Environmental Conditions
- Cold temperature rated to -45°C
- Temperature Rating
- 90°C
Flammability RatingInsulation rated per UL 94
