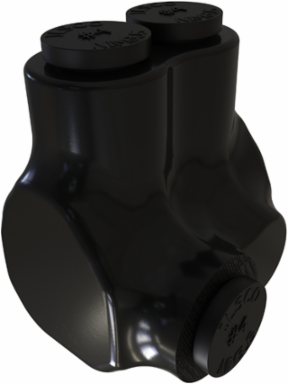

ILSCO PBTO-4 Nimbus Insulated Aluminum In-Line Splicer-Reducer Connector Offset, Conductor Range 4-14, 2 Ports, Tin Plated, UL, CSA
- MPN: PBTO-4
- UPC: 783669078923
- PPN: ILC-PBTO-4
CAD
$46.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Nimbus Insulated Aluminum In-Line Splicer-Reducer Connector Offset, Conductor Range 4-14, 2 Ports, Tin Plated, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
| Height | 1.379 in | 35.0266 mm |
|---|---|
| Weight | 0.09 lbs |
| Length | 1.168 in | 29.6672 mm |
|---|---|
| Width | 1.394 in |
Voltage
| Voltage Rating | 600 V |
|---|
Dimensions
| Drive Size Main | 1/8 |
|---|---|
| Height BX (IN) | 2.75 |
| Length (mm) | 29.6672 |
| Max Insulation OD (mm) | 8.0518 |
| Width BX (IN) | 4 |
| Drive Type Main | Internal Hex |
|---|---|
| Height (mm) | 35.0266 |
| Max Insulation OD (IN) | 0.317 |
| Weight BX (LB) | 1.216 |
Testing Standards
| CSA File Number | LR-29601 |
|---|---|
| Prop65 Compliance | WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov |
| UL / CULUS Specification | UL 486A/B Listed |
| CSA Standard | C22.2 No. 65-03 |
|---|---|
| UL Control Number | 453G |
| UL File Number | E6207 |
Additional Class Attributes
| Connection | Mechanical |
|---|---|
| Number of Conductors | 2 |
| Number of Ports / Wireways | 2 |
| Replacement Part(s) | PLUG-4 |
| Contains DE-OX® | Yes |
|---|---|
| Number of Poles | 1 |
| Number of Usable Ports | 2 |
Material and Finish
| Conductor Material | Aluminum, Copper |
|---|---|
| Insulation | Plastisol |
| Wire Binding Hardware Finish | Zinc Clear Trivalent Chromate |
| Connector Finish | Tin |
|---|---|
| Material | Aluminum |
| Wire Binding Hardware Material | Steel |
Conductor Ranges
| Conductor Range AL Stranded (Primary, run, main, line) | 4 Str - 14 Str |
|---|---|
| Conductor Range CU Stranded (Primary, run, main, line) | 4 Str - 14 Str |
| Conductor Range CU Solid (Primary, run, main, line) | 10 Sol - 14 Sol |
|---|---|
| Conductor Range AL Solid (Primary, run, main, line) | 10 Sol - 14 Sol |
Additional Technical Specifications
| Conductor Type | Stranded, Solid |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Dual Rated | Yes |
| UPC Code | 78366907892 |
| Carton Quantity Description | STD PACK QTY 12 |
|---|---|
| NEMA Code | S-588-4 |
Bolt and Screw Sizes
| Number of Wire Binding Screws per Port | 1 |
|---|---|
| Wire Binding Torque | 10 - 18 AWG = 20, 8 AWG = 25, 4 - 6 AWG = 35, 2 AWG = 40 |
| Wire Binding Screw Size | 1/4 |
|---|
Color
| Cap Color Main | Black |
|---|---|
| Color | Black |
| Cap Color Tap | Black |
|---|
Environment and Temperature
| Environmental Conditions | Cold temperature rated to -45°C |
|---|---|
| Temperature Rating | 90°C |
| Flammability Rating | Insulation rated per UL 94 |
|---|
