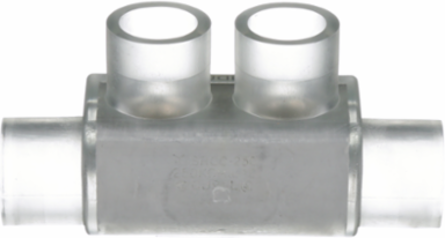

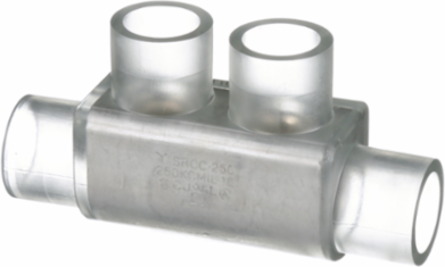

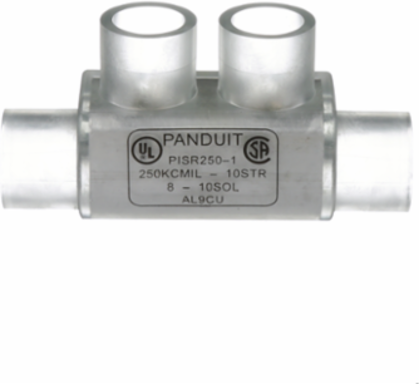

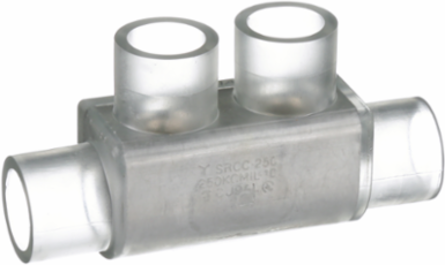

Panduit PISR250-1 Pan-Lug™ In-Line Splicer/Reducer, Max Aluminum 250 kcmil, Tin-Plated
Panduit PISR250-1 Pan-Lug™ In-Line Splicer/Reducer, Max Aluminum 250 kcmil, Tin-Plated
- MPN: PISR250-1
- UPC: 074983574957
- PPN: PAN-PISR250-1
- UNSPSC: 39121449
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$49.46/ EA
Description
The PISR250-1 Splicer/Reducer Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Dual rated for use with copper or aluminum conductors. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.
Specifications
Specifications
- Country of Origin
- United States
- Product Segment
- IEI
- Sub Brand
- Pan-Lug™
- Finish/Coating
- Tin-Plated
- Wire Strip Length (mm)
- 28.5
- Overall Height (mm)
- 56.9
- Insulation Material
- Blue PVC
- Wire Strip Length (In.)
- 1-1/8
- Barrel Type
- Standard
- Product Type
- In-Line Splicer/Reducer Multi-Tap Connector
- Screw Type
- Hex
- Aluminum Conductor Size
- 10 AWG-250 kcmil
Any Reason Not to SellN
UL Temperature Rating (°C)90
Overall Length (mm)101.6
Overall Height (In.)2.24
CSA Temperature Rating (°C)90
Overall Width (mm)31.8
Overall Width (In.)1.25
Base MaterialAluminum
Overall Length (In.)4
Maximum Voltage (V)600
Copper Conductor Size10 AWG STR-250 kcmil, 10-8 AWG SOL
Packaging Details
- UPC
- 07498357495
- Standard Package Volume Ft3
- 0.0328
- Std Package Height In
- 3.4
- Std Package Length In
- 4.75
- Std Package Width In
- 3.4
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 1
- Standard Carton Weight Pounds
- 0.0000
- Min. Order UOM
- Piece
- REACH Status
- N
- Mercury Content Indicator
- N
- Min Order Qty
- 1.0000
- Pallet Volume
- 0.000000
- RoHS Compliant
- Compliant
GTIN Package00074983574957
Standard Package Weight Pounds0.4320
Std Package Height MM86.36
Std Package Length MM120.65
Std Package Width MM86.36
UOM EA PKEA
Standard Carton Volume Ft30.0000
Std Ctn Qty0
EAN00074983574957
ARRA CompliantY
Hazardous Material FlagN
Pallet Quantity0
Pallet Weight0.0000
